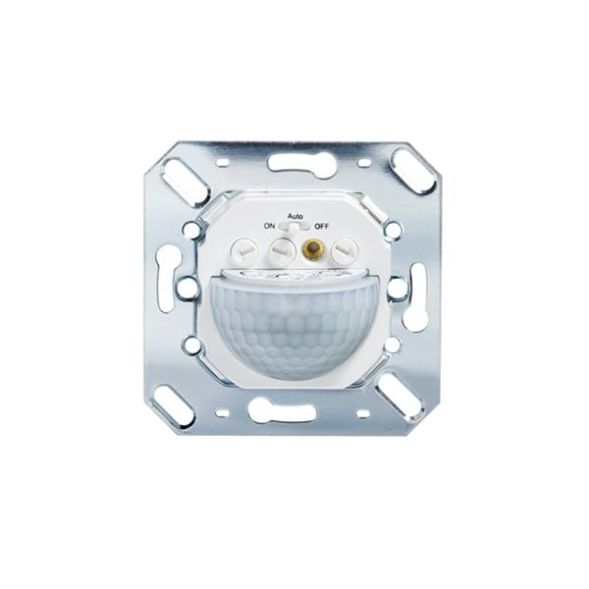

Presence detector with 180° detection range for wall mounting, automatic light control depending on presence and daylight, 16 A high-performance relay (tungsten pre-contact), especially suitable for switching capacitive loads such as electronic ballasts, parallel-compensated fluorescent lamps, compact fluorescent lamps, energy-saving lamps, additional switching contact 'HLK' for controlling heating, ventilation and air conditioning depending on presence, programmable via remote control
| Property | Value |
| Depth: | 70 mm |
| Width: | 70 mm |
| Height: | 55 mm |
| Version: | Presence detector |
| Color: | Other |
| Rated voltage: | 230 V |
| Material: | Plastic |
| Mounting type: | Flush-mounted |
| Response brightness: | 5 to 2000 lx |
| Protection class (IP): | IP20 |
| Max. switching power: | 2300 W |
| Voltage type: | AC |
| Max. range to one side: | 8.0 m |
| Scan angle: | 180 ° |
| Suitable for wall mounting: | yes |
| Min. duty cycle: | 12 s |
| Max. Duty cycle: | 60 min |
| Creep-under protection/rear field monitoring: | yes |
| Temperature: | 0 to 50 °C |
| Adjustable response brightness: | yes |
| Adjustable response sensitivity: | yes |
| Max. presence area: | 6.29 m² |
| Max. frontal range: | 3.0 m |
| Max. Inrush current: | 800 A |
| Sensor type: | passive infrared |
| Optimal installation height: | 1.1 m |
| Surface finish: | matt |
| Material quality: | thermoplastic |
| Detection field diameter on floor: | 16 m |
| Number of switching zones: | 1 |
| Switch-off delay: | 30 s |
| Detection angle horizontal: | 90 to 180 ° |
| Frequency: | 50 Hz |
| Halogen-free: | yes |
| Constant light control: | no |
| HVAC control: | yes |
| Forced shutdown: | yes |
| Animal corridor: | yes |
| Networkable: | no |
| Bypass switch: | yes |
| Suitable for wireless transmission: | no |
| Remote control: | yes |
| With signal unit: | yes |
| Alarm function: | no |
| Teach function for response brightness: | yes |
| Dimming function with dimming insert: | no |
| Transparent: | yes |
| With remote control: | no |
| Suitable for C load: | yes |
| With DALI interface: | no |
| Forced switching on: | yes |
| Suitable for ceiling mounting: | no |
| Connection type: | Plug-in terminal |
| Antibacterial treatment: | no |
| Installation depth: | 34 mm |
| Installation diameter: | 60 mm |
| Min. depth of the device box: | 34 mm |
Features
Bridging switch
Yes
With signal unit
Yes
Number of switching zones
1
Response brightness
5 to 2000 lx
Forced shutdown
Yes
Max. inrush current
800 A
Scanning angle
180 °
Forced switching on
Yes
Max. presence range
6.29 m²
Manufacturer
HAN
EM10410017
GTIN
4015120410017
Dimming function with dimming insert
No
Alarm function
No
Connection type
Plug-in terminal
Response sensitivity adjustable
Yes
Response brightness adjustable
Yes
Antibacterial treatment
No
Version
Presence detector
Surface finish
Frosted
Width
70 mm
Installation diameter
60 mm
Installation depth
34 mm
Detection field diameter on floor
16m
Detection angle horizontal
90 to 180 °
Color
Remote controllable
Yes
Frequency
50Hz
Suitable for C-load
Yes
Suitable for ceiling mounting
No
Suitable for wall mounting
Yes
Suitable for wireless transmission
No
HVAC control
Yes
Halogen free
Yes
Height
55 mm
Constant light control
No
Max. duty cycle
60 min
Max. range frontal
3.0m
Max. range to one side
8.0m
Max. switching capacity
2300W
Min. duty cycle
12s
Min. depth of the device box
34 mm
With DALI interface
No
With remote
No
Mounting type
Flush-mounted
Nominal voltage
230V
Optimal mounting height
1.1m
IP protection)
IP20
Sensor type
Passive infrared
Voltage type
AC
Teach function for response brightness
Yes
Temperature
0 to 50 °C
Depth
70 mm
Animal corridor
Yes
Transparent
Yes
Creep protection/rear field monitoring
Yes
Networkable
No
Material
Plastic
Material quality
Thermoplastic
