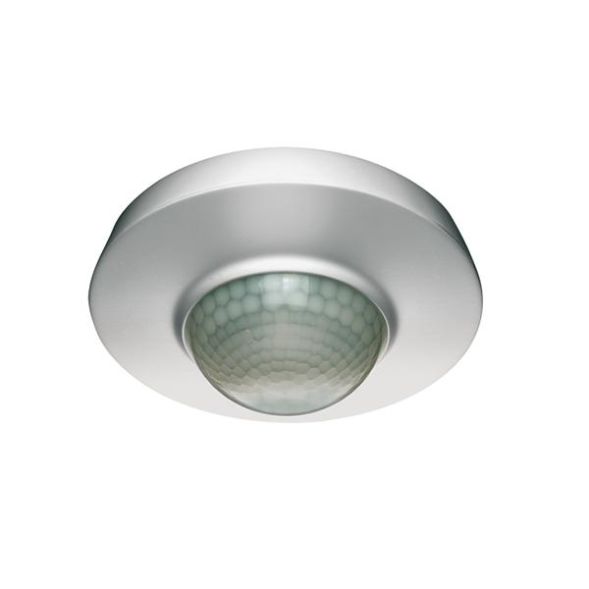

in flush-mounted version, surface-mounted installation with frame (order separately), specified range at 3 m installation height, settings mechanically via potentiometer or electronically with remote control Mobil-PDi/MDi (order separately), channel 1 = lighting, switching capacity 2300W/10A, 1150 VA/5A, follow-up time: pulse/approx. 15 sec. - 30 min., light value: approx. 5 - 2000 lux, additional potential-free presence-dependent switching contact HLK, with slave input to extend the detection range, protection type: IP 20 (flush-mounted version), IP 54 (with surface-mounted socket), protection class II, TÜV Süd, cover panel and design ring can be replaced and painted, color white, similar to RAL 9010
| Property | Value |
| Height: | 75 mm |
| Design: | Presence detector |
| Color: | white |
| Nominal voltage: | 230 V |
| RAL number (similar): | 9010 |
| Material: | Plastic |
| Mounting type: | Flush-mounted |
| Response brightness: | 5 to 2000 lx |
| Protection class (IP): | IP20 |
| Max. Switching capacity: | 2300 W |
| Voltage type: | AC |
| Max. range to one side: | 12.0 m |
| Scan angle: | 360 ° |
| Suitable for wall mounting: | no |
| Min. duty cycle: | 15 s |
| Max. Duty cycle: | 30 min |
| Creep-under protection/rear field monitoring: | yes |
| Temperature: | 0 to 50 °C |
| Adjustable response brightness: | yes |
| Adjustable response sensitivity: | yes |
| Max. presence area: | 28.31 m² |
| Max. frontal range: | 4.0 m |
| Max. Inrush current: | 800 A |
| Sensor type: | passive infrared |
| Optimal installation height: | 3.0 m |
| Surface finish: | matt |
| Material quality: | thermoplastic |
| Detection field diameter on floor: | 24 m |
| Number of switching zones: | 1 |
| Switch-off delay: | 30 s |
| Detection angle horizontal: | 180 to 360 ° |
| Frequency: | 50 Hz |
| Halogen-free: | yes |
| Constant light control: | no |
| HVAC control: | yes |
| Forced shutdown: | yes |
| Animal corridor: | no |
| Networkable: | no |
| Bypass switch: | yes |
| Suitable for wireless transmission: | no |
| Remote control: | yes |
| With signal unit: | yes |
| Alarm function: | no |
| Teach function for response brightness: | yes |
| Dimming function with dimming insert: | no |
| Transparent: | yes |
| With remote control: | no |
| Suitable for C load: | yes |
| With DALI interface: | no |
| Forced switching on: | yes |
| Suitable for ceiling mounting: | yes |
| Connection type: | Plug-in terminal |
| Antibacterial treatment: | no |
| Diameter: | 140 mm |
| Installation depth: | 15 mm |
| Installation diameter: | 60 mm |
| Min. depth of device box: | 15 mm |
Features
Bridging switch
Yes
With signal unit
Yes
Number of switching zones
1
Response brightness
5 to 2000 lx
Forced shutdown
Yes
Max. inrush current
800 A
Scanning angle
360 °
Forced switching on
Yes
Max. presence range
28.31 m²
Manufacturer
HAN
EM10425103
GTIN
4015120425103
Dimming function with dimming insert
No
Alarm function
No
Connection type
Plug-in terminal
Response sensitivity adjustable
Yes
Response brightness adjustable
Yes
Antibacterial treatment
No
Version
Presence detector
Surface finish
Frosted
Diameter
140 mm
Installation diameter
60 mm
Installation depth
15 mm
Detection field diameter on floor
24m
Detection angle horizontal
180 to 360 °
Color
Remote controllable
Yes
Frequency
50Hz
Suitable for C-load
Yes
Suitable for ceiling mounting
Yes
Suitable for wall mounting
No
Suitable for wireless transmission
No
HVAC control
Yes
Halogen free
Yes
Height
75 mm
Constant light control
No
Max. duty cycle
30 min
Max. range frontal
4.0m
Max. range to one side
12.0m
Max. switching capacity
2300W
Min. duty cycle
15s
Min. depth of the device box
15 mm
With DALI interface
No
With remote
No
Mounting type
Flush-mounted
Nominal voltage
230V
Optimal mounting height
3.0m
RAL number (similar)
9010
IP protection)
IP20
Sensor type
Passive infrared
Voltage type
AC
Teach function for response brightness
Yes
Temperature
0 to 50 °C
Animal corridor
No
Transparent
Yes
Creep protection/rear field monitoring
Yes
Networkable
No
Material
Plastic
Material quality
Thermoplastic
