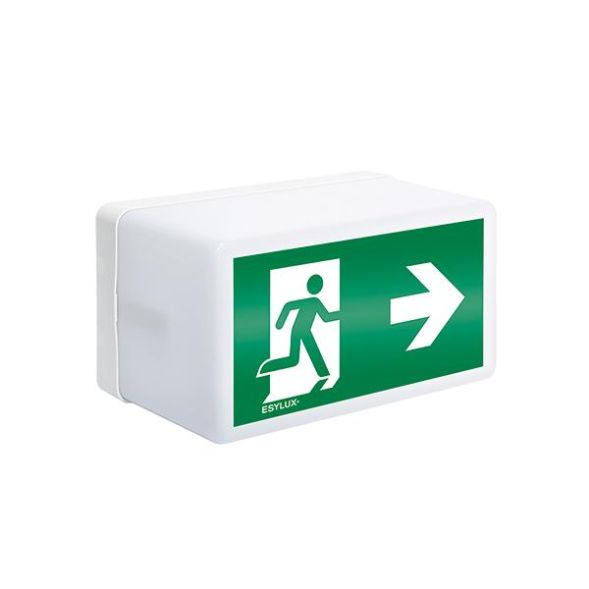

Single battery emergency light with 3 hours emergency light duration and 21 m viewing distance for wall and ceiling mounting. Prepared for wall bracket and pendant mounting using accessories. Conventional function control with test button, status display via LED.Technical data: Mains voltage 230 V/50 Hz, Power consumption approx. 2.5 W in standby, For light sources 20 x LED (included), Permissible ambient temperature 5 °C...+35 °C, Protection class IP 54, Protection class II, Mounting type ceiling and wall mounting, wall bracket and pendant mounting with accessories, Housing material polypropylene (PP), Dimensions approx. Wall mounting: height 135 mm x width 250 mm x depth 150 mm, Ceiling mounting: height 150 mm x width 250 mm x depth 135 mm, Scope of delivery including 3 self-adhesive pictogram films with 21 m recognition range (arrow left, right and bottom), recognition range 21 m (DIN), pictogram height 105mm, Battery NiCd battery 4.8 V/800 mAh, Charging time min. 20 h, color white, similar to RAL 9010
| Property | Value |
| Housing color: | white |
| Protection rating (IP): | IP54 |
| Protection class: | II |
| Voltage type: | AC |
| Detection range: | 21 m |
| Length: | 250 mm |
| Width: | 150 mm |
| Height/depth: | 135 mm |
| Max. System performance: | 3.0 W |
| Battery type: | Lithium-ion |
| Rated operating time: | 3 h |
| Operating device: | LED operating device, current-controlled |
| Light source: | LED not replaceable |
| Impact resistance: | IK03 |
| Socket: | other |
| Rated voltage: | 230 V |
| With remote switch connection: | no |
| Cover material: | Plastic opal |
| With light source: | yes |
| Switching type: | Maintained switching/standby switching |
| Monitoring device: | Test button |
| Mounting type: | Ceiling mounting |
| Housing material: | Plastic |
| Suitable for marking type: | Sticker |
| Supply: | decentralized (single battery) |
| Function: | Escape route marking |
| With pictogram: | yes |
| Suitable for Number of lamps: | 1 |
| Number of lamp heads: | 1 |
| Light distributor: | other |
| Rated service life L80/B10 at 25 °C: | 50000 h |
| Luminaire with limited surface temperature 'D-mark': | no |
| Rated ambient temperature according to IEC62722-2-1: | 5 to 45 °C |
| Type of wiring: | suitable for through-wiring |
| Number of poles: | 3 |
| Conductor cross-section: | 2.50 mm² |
| Connection type: | Plug connection |
