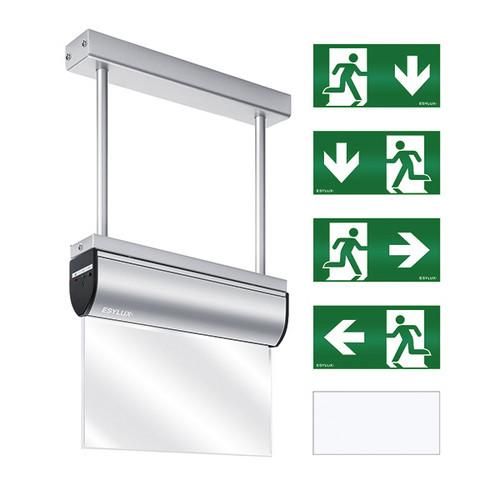

Single battery emergency light with 3 hours of emergency light duration and 25 m (DIN) detection range for pendant mounting with self-monitoring (SC) and fail-safe contact (opens in the event of a fault). Additional remote switch connection (F+, F-) for deactivating the emergency light function when the building is not in use. Complete with mounting accessories. Includes pictogram disc and 5 pictograms (bottom (both sides), right, left, empty symbol). Includes light source, 24 LEDs. Function control and self-monitoring can be triggered conventionally with a test button or conveniently with an ESY pen or Mobil-SLi remote control. Constant charge monitoring. Automatic, weekly function test and annual operating time test. Test results displayed using colored LEDs (green/red). Permanent and standby mode. Includes battery with reverse polarity protected plug connection. Connection using plug-in terminals. Cable entry from above using mounting accessories (included). Housing made of surface-treated aluminum.
| Property | Value |
| Housing color: | Aluminum |
| Protection rating (IP): | IP40 |
| Protection class: | I |
| Voltage type: | AC |
| Detection range: | 25 m |
| Length: | 300 mm |
| Width: | 55 mm |
| Height/depth: | 575 mm |
| Max. System performance: | 3.0 W |
| Battery type: | Lithium-ion |
| Rated operating time: | 3 h |
| Operating device: | LED operating device, current-controlled |
| Light source: | LED not replaceable |
| Socket: | other |
| Rated voltage: | 230 V |
| With remote switch connection: | yes |
| Cover material: | transparent plastic |
| Installation width: | 55 mm |
| With Light source: | yes |
| Installation length: | 300 mm |
| Switching type: | maintained switching/standby switching |
| Monitoring device: | automatic self-test |
| Mounting type: | pendulum |
| Housing material: | aluminum |
| Suitable for marking type: | acrylic glass plate |
| Feed: | decentralized (single battery) |
| Function: | escape route marking |
| With pictogram: | yes |
| Suitable for number of lamps: | 1 |
| Number of lamp heads: | 1 |
| Light distributor: | other |
| Luminaire with limited surface temperature 'D-mark': | no |
| Rated ambient temperature according to IEC62722-2-1: | 0 to 40 °C |
| Installation height/depth: | 575 mm |
| Type of wiring: | suitable for through-wiring |
| Number of poles: | 7 |
| Conductor cross-section: | 2.50 mm² |
| Connection type: | Plug connection |
