Description

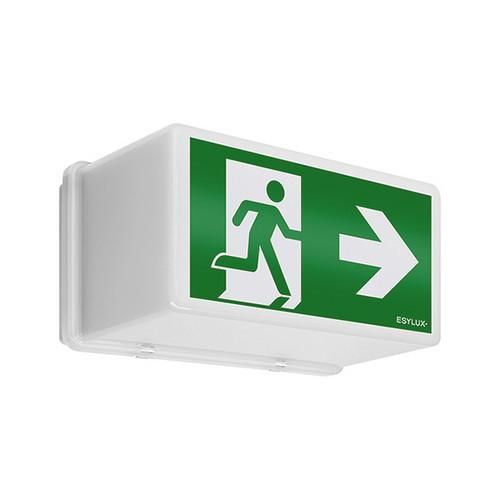

Single battery emergency light with 8 hours of emergency light duration and 21 m viewing distance for wall and ceiling mounting. Prepared for wall bracket and pendant mounting using accessories. Conventional function control with test button, status display via LED. Permanent or standby mode are provided in the single battery emergency light.
| Property | Value |
| Housing color: | white |
| Protection rating (IP): | IP54 |
| Protection class: | II |
| Voltage type: | AC |
| Detection range: | 21 m |
| Length: | 250 mm |
| Width: | 150 mm |
| Height/depth: | 135 mm |
| Max. System performance: | 3.0 W |
| Battery type: | Lithium-ion |
| Rated operating time: | 8 h |
| Operating device: | LED operating device, current-controlled |
| Light source: | LED not replaceable |
| Impact resistance: | IK03 |
| Socket: | other |
| Rated voltage: | 230 V |
| With remote switch connection: | no |
| Cover material: | Opal plastic |
| With light source: | yes |
| Switching type: | Maintained switching/standby switching |
| Monitoring device: | Test button |
| Mounting type: | Ceiling mounting |
| Housing material: | Plastic |
| Suitable for marking type: | Sticker |
| Supply: | decentralized (single battery) |
| Function: | Escape route marking |
| With pictogram: | yes |
| Suitable for Number of lamps: | 1 |
| Number of lamp heads: | 1 |
| Light distributor: | other |
| Rated service life L80/B10 at 25 °C: | 50000 h |
| Luminaire with limited surface temperature 'D-mark': | no |
| Rated ambient temperature according to IEC62722-2-1: | 5 to 45 °C |
| Type of wiring: | suitable for through-wiring |
| Number of poles: | 3 |
| Conductor cross-section: | 2.50 mm² |
| Connection type: | Plug connection |
Features
Circuit type
Maintained/standby mode
HAB
SLB EL 8h 21m SM
Manufacturer
HAN
EN10032677
GTIN
4015120032677
Connection type
Plug connection
Type of wiring
Suitable for through wiring
Rated lifetime L80/B10 at 25 °C
50000 hours
Rated ambient temperature according to IEC62722-2-1
5 to 45 °C
Operating device
LED control gear current controlled
Width
150 mm
Version
Other
Function
Escape route marking
Suitable for number of lamps
1
Housing color
White
Height/Depth
135 mm
Conductor cross-section
2.50 mm²
Luminaire with limited surface temperature D-mark
No
Lamps
LED not replaceable
Light distributor
Other
Length
250 mm
Max. system performance
3.0W
With light source
Yes
Mounting type
Ceiling mounting
Nominal voltage
230V
Number of poles
3
Impact resistance
IK03
IP protection)
IP54
Protection class
II
Voltage type
AC
Cover material
Plastic opal
Housing material
Plastic
