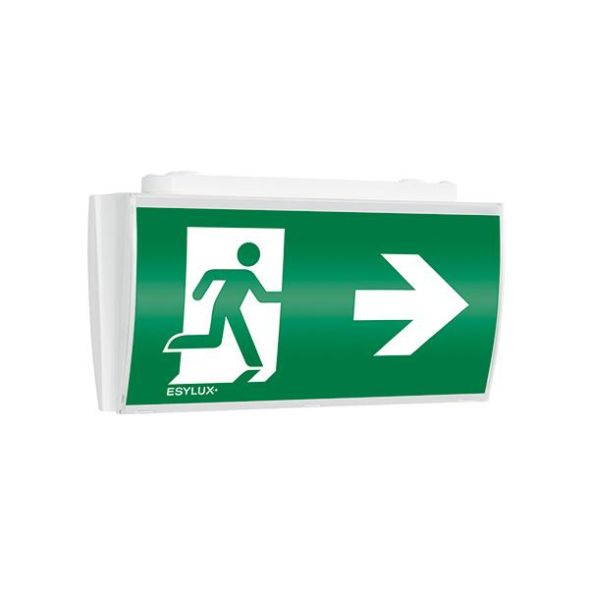

Single battery emergency light with 3 h / 8 h emergency light duration and 24 m detection range with self-monitoring (SC) and fail-safe contact (opens in the event of a fault), 3 h mode uses the pictogram lighting and downlight function / 8 h mode uses the pictogram lighting in emergency operation, additional remote switch connection (F+, F-) to deactivate the emergency light function when the building is not in use, function control and self-monitoring can be triggered conventionally with a test button or conveniently with the Mobil-SLi remote control - constant charge monitoring -, automatic, weekly function test and annual operating time test - display of the test results via colored LEDs (green/red), permanent and standby mode, additional light output downwards, including NiMh battery with reverse polarity protected plug connection, connection via plug terminals, cable entry optionally from the rear or above (self-sealing membrane), housing made of ABS
| Property | Value |
| Housing color: | white |
| Protection rating (IP): | IP54 |
| Protection class: | II |
| Voltage type: | AC |
| Detection range: | 24 m |
| Rated luminous flux according to IEC 62722-2-1: | 65 lm |
| Length: | 245 mm |
| Width: | 67 mm |
| Height/depth: | 138 mm |
| Light source: | LED not replaceable |
| Socket: | other |
| Rated voltage: | 230.0 V |
| With remote switch connection: | yes |
| Cover material: | transparent plastic |
| With light source: | yes |
| Switching type: | Maintained operation/standby operation |
| Monitoring device: | automatic self-test |
| Mounting type: | Ceiling mounting |
| Housing material: | Plastic |
| Type of marking: | one-sided/two-sided |
| Suitable for type of marking: | Insert sheet/plate |
| Feed: | decentralized (single battery) |
| Battery type: | NiMh |
| Function: | Escape route marking |
| With pictogram: | yes |
| Suitable for number of lamps: | 1 |
| Number of light heads: | 1 |
| Operating device: | LED operating device, current-controlled |
| Light distributor: | other |
| Energy efficiency class of the permanently installed lamp: | A++, A+, A (LED) |
| Luminaire with limited surface temperature 'D-mark': | no |
| Rated ambient temperature according to IEC62722-2-1: | 35 °C |
| Max. System power: | 4.0 W |
| Nominal operating time: | 3 h |
| Wiring type: | suitable for through wiring |
| Number of poles: | 7 |
| Conductor cross-section: | 1.50 mm |
| Connection type: | Plug connection |
