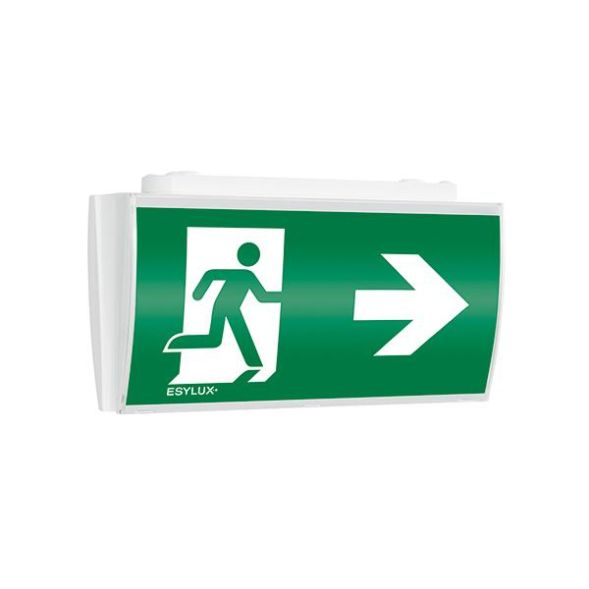

Single battery emergency light with 3 h / 8 h emergency light duration and 30 m detection range with self-monitoring (SC) and fail-safe contact (opens in the event of a fault), 3 h mode uses the pictogram lighting and downlight function / 8 h mode uses the pictogram lighting in emergency operation, additional remote switch connection (F+, F-) to deactivate the emergency light function when the building is not in use, function control and self-monitoring can be triggered conventionally with a test button or conveniently with the Mobil-SLi remote control - constant charge monitoring -, automatic, weekly function test and annual operating time test - display of the test results via colored LEDs (green/red), permanent and standby mode, additional light output downwards, including NiMh battery with reverse polarity protected plug connection, connection via plug terminals, cable entry optionally from the rear or above (self-sealing membrane), housing made of ABS
| Property | Value |
| Housing color: | white |
| Protection rating (IP): | IP54 |
| Protection class: | II |
| Voltage type: | AC |
| Detection range: | 30 m |
| Length: | 306 mm |
| Width: | 72 mm |
| Height/depth: | 170 mm |
| Max. System performance: | 5.0 W |
| Battery type: | Lithium-ion |
| Nominal operating time: | 3 to 8 h |
| Rated luminous flux according to IEC 62722-2-1: | 65 lm |
| Luminous flux in standby mode: | 65 lm |
| Operating device: | LED operating device, current-controlled |
| Light source: | LED not replaceable |
| Socket: | other |
| Nominal voltage: | 230 V |
| With Remote switch connection: | yes |
| Cover material: | transparent plastic |
| With light source: | yes |
| Switching type: | maintained switching/standby switching |
| Monitoring device: | automatic self-test |
| Mounting type: | ceiling mounting |
| Housing material: | plastic |
| Suitable for marking type: | insert sheet/plate |
| Feed-in: | decentralized (single battery) |
| Function: | escape route marking |
| With pictogram: | yes |
| Suitable for number of lamps: | 1 |
| Number of lamp heads: | 1 |
| Light distributor: | other |
| Luminaire with limited surface temperature 'D-mark': | no |
| Rated ambient temperature according to IEC62722-2-1: | 0 to 45 °C |
| Type of wiring: | suitable for through-wiring |
| Number of poles: | 6 |
| Conductor cross-section: | 2.50 mm² |
