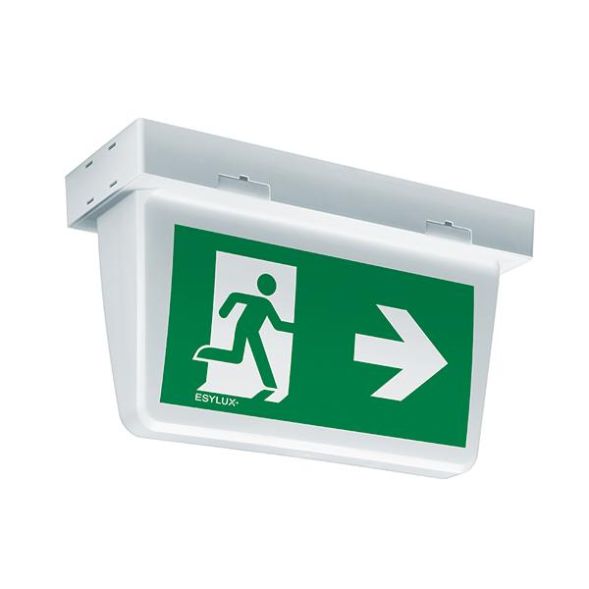

Single battery emergency light for escape route marking with 3 hours emergency light duration for a viewing distance of 32m in accordance with DIN EN 1838. Self-monitoring with colored status display. Tamper-proof function control can be triggered by remote control or magnet. Operation in either permanent or standby mode is possible. Plug-in terminal with through-wiring function. Constant charge monitoring, automatic weekly function test and half-yearly operating duration test, display of test results on colored status display. Diverse installation options thanks to extensive accessories (not included). NiCd battery with reverse polarity-proof plug connection (included). Housing made of UV-stabilized polycarbonate.
| Property | Value |
| Housing color: | white |
| Protection rating (IP): | IP54 |
| Protection class: | II |
| Voltage type: | AC |
| Detection range: | 32 m |
| Length: | 388 mm |
| Width: | 148 mm |
| Height/depth: | 231 mm |
| Max. System performance: | 3.0 W |
| Battery type: | NiCd |
| Rated operating time: | 3 h |
| Operating device: | LED operating device, current-controlled |
| Light source: | LED not replaceable |
| Socket: | other |
| Rated voltage: | 230 V |
| With remote switch connection: | no |
| Cover material: | Opal plastic |
| Installation width: | 155 mm |
| With Illuminant: | yes |
| Installation length: | 430 mm |
| Switching type: | maintained/standby |
| Monitoring device: | automatic self-test |
| Mounting type: | surface-mounted/built-in |
| Housing material: | plastic |
| Suitable for marking type: | sticker |
| Feed: | decentralized (single battery) |
| Function: | escape route marking |
| With pictogram: | yes |
| Suitable for number of lamps: | 1 |
| Number of lamp heads: | 1 |
| Light distributor: | other |
| Luminaire with limited surface temperature 'D-mark': | no |
| Rated ambient temperature according to IEC62722-2-1: | 5 to 35 °C |
| Installation height/depth: | 66 mm |
| Type of wiring: | suitable for through-wiring |
| Number of poles: | 2 |
| Conductor cross-section: | 2.50 mm² |
| Connection type: | Plug connection |
Features
Circuit type
Maintained/standby mode
Manufacturer
HAN
EN10077203
GTIN
4015120077203
Connection type
Plug connection
Type of wiring
Suitable for through wiring
Rated ambient temperature according to IEC62722-2-1
5 to 35 °C
Operating device
LED control gear current controlled
Width
148 mm
Installation width
155 mm
Installation height/depth
66 mm
Installation length
430 mm
Version
Other
Function
Escape route marking
Suitable for number of lamps
1
Housing color
White
Height/Depth
231 mm
Conductor cross-section
2.50 mm²
Luminaire with limited surface temperature D-mark
No
Lamps
LED not replaceable
Light distributor
Other
Length
388 mm
Max. system performance
3.0W
With light source
Yes
Mounting type
Construction/Installation
Nominal voltage
230V
Number of poles
2
IP protection)
IP54
Protection class
II
Voltage type
AC
Cover material
Plastic opal
Housing material
Plastic
