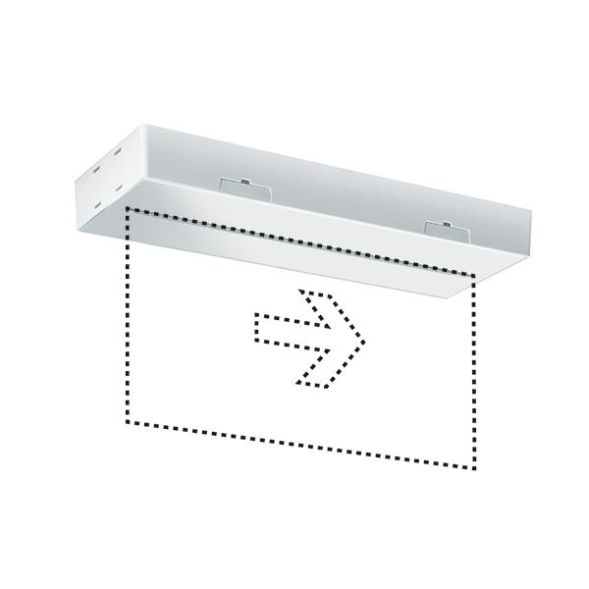

Single battery emergency light for escape route marking with 3/8 h emergency light duration, detection range 24m, self-monitoring with colored status display, tamper-proof function control can be triggered by remote control or magnet, operation optionally in permanent or standby mode, plug-in terminal with through-wiring function, constant charge monitoring - automatic, weekly function test and half-yearly operating time test - display of test results on colored status display, diverse installation types thanks to extensive accessories (not included), NiCd battery with reverse polarity protected plug connection (included), housing made of UV-stabilized polycarbonate, mains voltage 230V/50Hz
| Property | Value |
| Housing color: | white |
| Protection rating (IP): | IP20 |
| Protection class: | II |
| Voltage type: | AC |
| Detection range: | 24 m |
| Length: | 328 mm |
| Width: | 108 mm |
| Height/depth: | 195 mm |
| Max. System performance: | 3.0 W |
| Battery type: | NiCd |
| Rated operating time: | 3 h |
| Operating device: | LED operating device, current-controlled |
| Light source: | LED not replaceable |
| Socket: | other |
| Rated voltage: | 230 V |
| With remote switch connection: | no |
| Cover material: | transparent plastic |
| Installation width: | 115 mm |
| With Illuminant: | yes |
| Installation length: | 370 mm |
| Switching type: | maintained/standby |
| Monitoring device: | automatic self-test |
| Mounting type: | surface-mounted/built-in |
| Housing material: | plastic |
| Suitable for marking type: | acrylic glass plate |
| Feed: | decentralized (single battery) |
| Function: | escape route marking |
| With pictogram: | no |
| Suitable for number of lamps: | 1 |
| Number of lamp heads: | 1 |
| Light distributor: | other |
| Luminaire with limited surface temperature 'D-mark': | no |
| Rated ambient temperature according to IEC62722-2-1: | 5 to 35 °C |
| Installation height/depth: | 66 mm |
| Type of wiring: | suitable for through-wiring |
| Number of poles: | 2 |
| Conductor cross-section: | 2.50 mm² |
| Connection type: | Plug connection |
Features
Circuit type
Maintained/standby mode
Manufacturer
HAN
EN10077371
GTIN
4015120077371
Connection type
Plug connection
Type of wiring
Suitable for through wiring
Rated ambient temperature according to IEC62722-2-1
5 to 35 °C
Operating device
LED control gear current controlled
Width
108 mm
Installation width
115 mm
Installation height/depth
66 mm
Installation length
370 mm
Version
Other
Function
Escape route marking
Suitable for number of lamps
1
Housing color
White
Height/Depth
195 mm
Conductor cross-section
2.50 mm²
Luminaire with limited surface temperature D-mark
No
Lamps
LED not replaceable
Light distributor
Other
Length
328 mm
Max. system performance
3.0W
With light source
Yes
Mounting type
Construction/Installation
Nominal voltage
230V
Number of poles
2
IP protection)
IP20
Protection class
II
Voltage type
AC
Cover material
Plastic transparent
Housing material
Plastic
