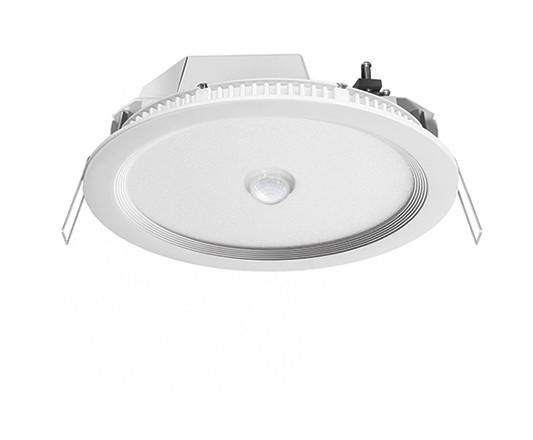

LED downlight, 18 W for ceiling installation. Recessed luminaire with opal cover (diffuser). High-quality housing, luminaire body made of aluminum, white powder-coated (RAL 9003). Can be used for ceiling installation without additional accessories. Color temperature: 3000 K with minimal color tolerances. Luminous flux: 1750 lm. Rated service life L80B50 at 25 °C: 40,000 h. Operating device: on/off (already included in delivery). Integrated COMPACT MINI motion detector with 360° detection area. Range of up to 8 m in diameter with a recommended installation height of 3 m (maximum installation height 5 m) for use in small rooms and passageways with little or no daylight. 16 A high-performance relay (tungsten pre-contact), especially suitable for switching capacitive loads such as LED lights. Fixed factory program for immediate operational readiness. Easy programming via remote control. Detection range extension by parallel connection of max. 8 detectors.
| Property | Value |
| Max. System power: | 17.5 W |
| Rated luminous flux according to IEC 62722-2-1: | 1650 lm |
| Housing color: | white |
| Housing material: | aluminum |
| Protection class (IP): | IP20 |
| Outer diameter: | 240 mm |
| Socket: | without |
| Light source: | LED not replaceable |
| Protection class: | I |
| With light source: | yes |
| Installation height/depth: | 70 mm |
| With control gear: | yes |
| Suitable for recessed mounting: | yes |
| Height/depth: | 60 mm |
| With motion detector: | yes |
| Color temperature: | 3000 K |
| Nominal voltage: | 220 to 240 V |
| Rated service life L80/B10 at 25 °C: | 40000 h |
| Beam angle: | extremely wide beam>80° |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | LED operating device, current-controlled |
| Luminaire with limited surface temperature 'D-mark': | no |
| Reflector: | white |
| Suitable for number of bulbs: | 1 |
| Luminous flux: | 1650 lm |
| Cover material: | Opal plastic |
| Cover of the luminaire with Thermal insulation material possible: | no |
| Voltage type: | AC |
| Light color: | white |
| Suitable for track mounting: | no |
| Adjustability: | not adjustable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for platform/floor mounting: | no |
| Suitable for truss mounting: | no |
| With light sensor: | yes |
| Suitable for surface mounting: | no |
| Suitable for cable system: | no |
| Surface: | powder-coated |
| Brushed surface: | no |
| Dimming depending on operating device: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
| Light distributor: | diffuser lens/optics/panel |
| Light emission: | direct |
| Rated service life L70/B50 at 25 °C: | 60000 h |
| Rated ambient temperature according to IEC62722-2-1: | -20 to 40 °C |
| Luminous intensity: | 586 cd |
| Wiring type: | Termination |
| Power factor: | 0.900000 |
| Number of poles: | 5 |
| Conductor cross-section: | 2.50 mm² |
| Connectable conductor cross-section: | 0.50 to 2.50 mm² |
| Connection type: | Plug terminal |
| Luminous efficacy: | 94 lm/W |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Photobiological safety according to EN 62471: | RG0 |
| Colour consistency (McAdam ellipse): | SDCM2 |
Features
Connectable conductor cross-section
0.50 to 2.50 mm²
HAB
ELSA-2 DL 225 OP 110° 1800 830 WH MD
Manufacturer
HAN
EO10299025
GTIN
4015120299025
Covering the luminaire with thermal insulation material possible
No
Connection type
Plug-in terminal
Type of wiring
Diploma
Outer diameter
240 mm
Rated lifetime L70/B50 at 25 °C
60000 hours
Rated lifetime L80/B10 at 25 °C
40000 hours
Rated luminous flux according to IEC 62722-2-1
1650lm
Rated ambient temperature according to IEC62722-2-1
-20 to 40 °C
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation height/depth
70 mm
Color consistency (McAdam ellipse)
SDCM2
Color temperature
3000K
Color rendering index CRI
80-89
Version
Without
Suitable for surface mounting
No
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for clamp mounting
No
Suitable for number of lamps
1
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
No
Suitable for rope system
No
Suitable for busbar mounting
No
Suitable for truss mounting
No
Housing color
White
Glow wire test according to IEC 60695-2-11
650 °C - 30 s
Height/Depth
60 mm
Power factor
0.900000
Conductor cross-section
2.50 mm²
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
94lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
1650lm
Light intensity
586 cd
Light distributor
Diffuser lens/optics/panel
Light distribution
Symmetrical
Max. system performance
17.5W
With operating device
Yes
With motion detector
Yes
With light source
Yes
With light sensor
Yes
Nominal voltage
220 to 240 V
Surface
Powder coated
Brushed surface
No
Without dimming function
Yes
Photobiological safety according to EN 62471
RG0
Number of poles
5
Reflector
White
IP protection)
IP20
Protection class
I
Voltage type
AC
Adjustability
Not adjustable
Cover material
Plastic opal
Housing material
Aluminum
