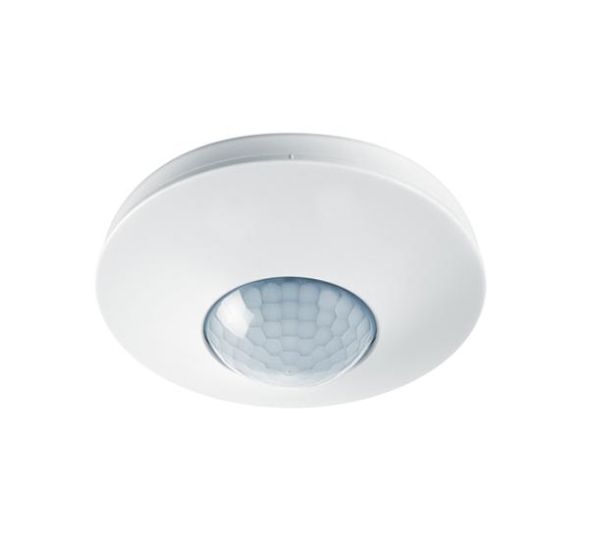

Motion detector with 360° detection range for ceiling mounting, range of up to 8/24 m in diameter at a recommended mounting height of 3 m (maximum mounting height 5 m), for use in small rooms and passageways with little or no daylight, 16 A high-performance relay (tungsten pre-contact), especially suitable for switching capacitive loads such as electronic ballasts, parallel-compensated fluorescent lamps, compact fluorescent lamps, energy-saving lamps, fixed factory program for immediate operational readiness
| Property | Value |
| Height: | 62 mm |
| Design: | motion detector |
| Color: | white |
| Nominal voltage: | 230 V |
| RAL number (similar): | 9010 |
| Material: | Plastic |
| Mounting type: | Flush-mounted |
| Response brightness: | 5 to 2000 lx |
| Protection class (IP): | IP20 |
| Max. Switching capacity: | 2300 W |
| Voltage type: | AC |
| Max. range to one side: | 4.0 m |
| Scan angle: | 360 ° |
| Suitable for wall mounting: | no |
| Min. duty cycle: | 60 s |
| Max. Duty cycle: | 30 min |
| Anti-creep protection/rear field monitoring: | yes |
| Temperature: | -25 to 50 °C |
| Adjustable response brightness: | yes |
| Adjustable response sensitivity: | yes |
| Max. frontal range: | 3.0 m |
| Max. Inrush current: | 800 A |
| Sensor type: | passive infrared |
| Optimal installation height: | 3.0 m |
| Surface finish: | matt |
| Material quality: | thermoplastic |
| Detection field diameter on floor: | 8 m |
| Number of switching zones: | 1 |
| Switch-on delay: | 30 s |
| Detection angle horizontal: | 180 to 360 ° |
| Frequency: | 50 Hz |
| Halogen-free: | yes |
| Constant light control: | no |
| HVAC control: | no |
| Forced shutdown: | yes |
| Animal corridor: | no |
| Networkable: | no |
| Bypass switch: | yes |
| Suitable for wireless transmission: | no |
| Remote control: | yes |
| With signal unit: | yes |
| Alarm function: | no |
| Teach function for response brightness: | yes |
| Dimming function with dimming insert: | no |
| Transparent: | no |
| With remote control: | no |
| Suitable for C load: | yes |
| With DALI interface: | no |
| Forced switching on: | yes |
| Suitable for ceiling mounting: | yes |
| Connection type: | Plug-in terminal |
| Antibacterial treatment: | no |
| Diameter: | 108 mm |
| Installation depth: | 24 mm |
| Installation diameter: | 60 mm |
| Min. depth of device box: | 24 mm |
Features
Bridging switch
Yes
With signal unit
Yes
Number of switching zones
1
Response brightness
5 to 2000 lx
Forced shutdown
Yes
Max. inrush current
800 A
Scanning angle
360 °
Forced switching on
Yes
Manufacturer
HAN
EP10055393
GTIN
4015120055393
Dimming function with dimming insert
No
Alarm function
No
Connection type
Plug-in terminal
Response sensitivity adjustable
Yes
Response brightness adjustable
Yes
Antibacterial treatment
No
Version
Motion detector
Surface finish
Frosted
Diameter
108 mm
Installation diameter
60 mm
Installation depth
24 mm
Detection field diameter on floor
8m
Detection angle horizontal
180 to 360 °
Color
Remote controllable
Yes
Frequency
50Hz
Suitable for C-load
Yes
Suitable for ceiling mounting
Yes
Suitable for wall mounting
No
Suitable for wireless transmission
No
HVAC control
No
Halogen free
Yes
Height
62 mm
Constant light control
No
Max. duty cycle
30 min
Max. range frontal
3.0m
Max. range to one side
4.0m
Max. switching capacity
2300W
Min. duty cycle
60s
Min. depth of the device box
24 mm
With DALI interface
No
With remote
No
Mounting type
Flush-mounted
Nominal voltage
230V
Optimal mounting height
3.0m
RAL number (similar)
9010
IP protection)
IP20
Sensor type
Passive infrared
Voltage type
AC
Teach function for response brightness
Yes
Temperature
-25 to 50 °C
Animal corridor
No
Transparent
No
Creep protection/rear field monitoring
Yes
Networkable
No
Material
Plastic
Material quality
Thermoplastic
