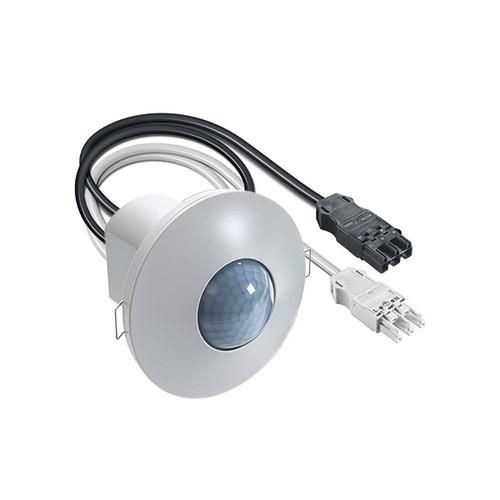

Motion detector with 360° detection area for ceiling mounting. Range of up to 8 m in diameter at a recommended mounting height of 3 m (maximum mounting height 5 m) for use in small rooms and passageways with little or no daylight. 2.0 m pre-assembled WAGO WINSTA® supply and discharge cable. 16 A high-performance relay (tungsten pre-contact), especially suitable for switching capacitive loads such as electronic ballasts, parallel-compensated fluorescent lamps, compact fluorescent lamps, energy-saving lamps. Permanently stored factory program for immediate operational readiness. Automatic light control for applications with little or no daylight. Simple programming via remote control with 'blue mode' technology or via setting elements. Integrated switch for setting via remote control or setting controller - avoids incorrect operation and as sabotage protection. Sources of interference can be suppressed by reducing the sensitivity using a DIP switch. Additional button input with switching function 'Room = ON + OFF/Corridor = ON'. Standard version as flush-mounted device. Surface-mounted or ceiling-mounted installation with accessories. Cover panel and design ring can be easily replaced/painted (available in silver as an accessory). Extension of the detection area by connecting a maximum of 8 detectors in parallel. Targeted masking of areas using the enclosed lens mask.
| Property | Value |
| Height: | 99 mm |
| Design: | motion detector |
| Color: | white |
| Nominal voltage: | 230 V |
| RAL number (similar): | 9010 |
| Material: | Plastic |
| Mounting type: | Flush-mounted |
| Response brightness: | 5 to 2000 lx |
| Protection class (IP): | IP20 |
| Max. Switching capacity: | 2300 W |
| Voltage type: | AC |
| Max. range to one side: | 4.0 m |
| Scan angle: | 360 ° |
| Suitable for wall mounting: | no |
| Min. duty cycle: | 60 s |
| Max. Duty cycle: | 30 min |
| Anti-creep protection/rear field monitoring: | yes |
| Temperature: | -25 to 50 °C |
| Adjustable response brightness: | yes |
| Adjustable response sensitivity: | yes |
| Max. frontal range: | 3.0 m |
| Max. Inrush current: | 800 A |
| Sensor type: | passive infrared |
| Optimal installation height: | 3.0 m |
| Surface finish: | matt |
| Material quality: | thermoplastic |
| Detection field diameter on floor: | 8 m |
| Number of switching zones: | 1 |
| Detection angle horizontal: | 180 to 360 ° |
| Frequency: | 50 Hz |
| Halogen-free: | yes |
| Constant light control: | no |
| HVAC control: | no |
| Forced shutdown: | yes |
| Animal corridor: | no |
| Networkable: | no |
| Bypass switch: | yes |
| Suitable for wireless transmission: | no |
| Remote controllable: | yes |
| With signal unit: | yes |
| Alarm function: | no |
| Teach function for Response brightness: | yes |
| Dimming function with dimming insert: | no |
| Transparent: | no |
| Suitable for C load: | yes |
| With DALI interface: | no |
| Forced switching on: | yes |
| Suitable for ceiling mounting: | yes |
| Connection type: | other |
| Antibacterial treatment: | no |
| Diameter: | 108 mm |
| Installation depth: | 300 mm |
| Installation diameter: | 68 mm |
| Min. depth of the device box: | 300 mm |
