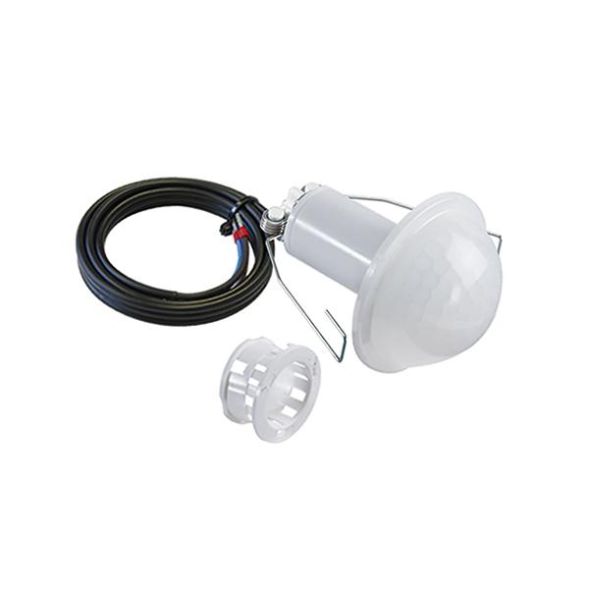

Mini motion detector with 360° detection range for recessed ceiling mounting, range of up to 8/12 m in diameter at a recommended mounting height of 3 m (maximum mounting height 5 m), for use in small rooms and passageways with little or no daylight, 16 A high-performance relay (tungsten pre-contact), especially suitable for switching capacitive loads such as. B. EVGs, parallel compensated fluorescent lamps, compact fluorescent lamps, energy saving lamps, fixed factory program for immediate operational readiness, automatic light control for applications with no or very low daylight content, easy programming via remote control, detection range extension by parallel connection of max. 8 detectors, small compact size for a mounting hole size of only 25 mm diameter, fixed connection cable of 60 cm length, new universal ESYLUX clamping technology for quick installation in suspended ceilings, lights, flush-mounted boxes, cabinets etc., ceiling recessed installation in suspended, closed ceilings with enclosed spring clips or clamping ring, targeted masking of areas using the enclosed lens mask
| Property | Value |
| Height: | 70 mm |
| Design: | motion detector |
| Colour: | other |
| Nominal voltage: | 230 V |
| Material: | Plastic |
| Mounting type: | flush-mounted |
| Response brightness: | 5 to 2000 lx |
| Protection class (IP): | IP55 |
| Max. Switching capacity: | 2300 W |
| Voltage type: | AC |
| Max. range to one side: | 6.0 m |
| Scan angle: | 360 ° |
| Suitable for wall mounting: | no |
| Min. duty cycle: | 60 s |
| Max. Duty cycle: | 15 min |
| Anti-creep protection/rear field monitoring: | yes |
| Temperature: | -25 to 50 °C |
| Adjustable response brightness: | yes |
| Adjustable response sensitivity: | yes |
| Max. range, frontal: | 3.0 m |
| Max. Inrush current: | 800 A |
| Sensor type: | passive infrared |
| Optimal installation height: | 3.0 m |
| Surface finish: | matt |
| Material quality: | thermoplastic |
| Detection field diameter on floor: | 12 m |
| Number of switching zones: | 1 |
| Switch-on delay: | 30 s |
| Detection angle horizontal: | 180 to 360 ° |
| Frequency: | 50 Hz |
| Halogen-free: | yes |
| Constant light control: | no |
| HVAC control: | no |
| Forced shutdown: | yes |
| Animal corridor: | no |
| Networkable: | no |
| Bypass switch: | yes |
| Suitable for wireless transmission: | no |
| Remote control: | yes |
| With signal unit: | yes |
| Alarm function: | no |
| Teach function for response brightness: | yes |
| Dimming function with dimming insert: | no |
| Transparent: | yes |
| With remote control: | no |
| Suitable for C load: | yes |
| With DALI interface: | no |
| Forced switching on: | yes |
| Suitable for ceiling mounting: | yes |
| Connection type: | crimping |
| Antibacterial treatment: | no |
| Diameter: | 58 mm |
| Installation depth: | 45 mm |
| Installation diameter: | 25 mm |
| Min. depth of device box: | 45 mm |
