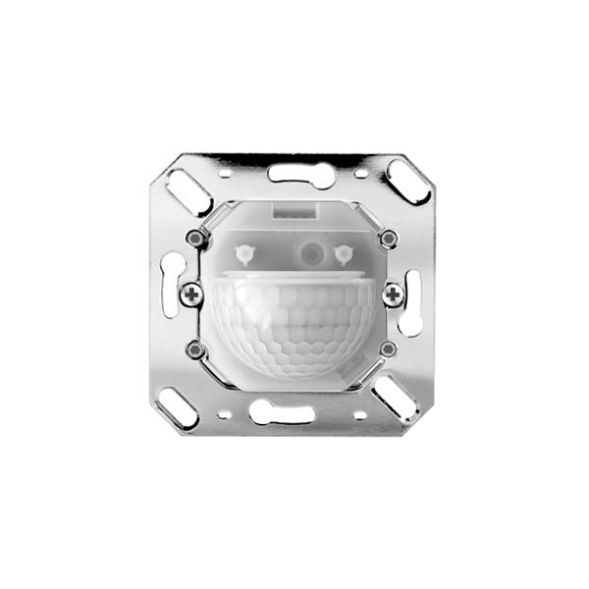

Presence detector with 180° detection range for wall mounting. Range of up to 16 m in diameter for use in conjunction with building automation systems. Operating voltage 12-36 V direct and alternating current (AC/DC). Potential-free software-controlled switching output (normally closed/normally closed). Detection display can be switched on and off. Silent switching up to max. 2 A. Technical data: Mains voltage 12 - 36 V UC (~/=), power consumption approx. < 0.3 W, detection range 180° horizontal, 60° vertical, range approx. 16 m, at a mounting height of 1.1 m, setting options electronically via infrared remote controls Mobil-PDi/MDi and X-REMOTE (order separately), permissible ambient temperature 0 °C...+50 °C, protection class IP 20, IP 44 depending on cover (order separately), protection class II, mounting type wall mounting, housing material UV-stabilized polycarbonate, dimensions approx. height 63 mm x width 70 mm x length 70 mm, installation dimension installation depth 34 mm, installation hole dimension 61 mm, connection terminal 2.5 mm, slave input no, switching capacity 12 - 36 V UC (~/=), 2 A, button input 1 yes, run-on time pulse/approx. 1 min. - 60 min., light measurement mixed light, light value approx. 5 - 2000 lux, contact breaker/make contact, breaker/potential-free, make contact/potential-free, switching capacity 12 - 36 V UC (~/=), 2 A, run-on time channel 2 pulse/approx. 5 min. - 120 min., run-on time pulse/approx. 1 min. - 60 min., color white
| Property | Value |
| Depth: | 70 mm |
| Width: | 70 mm |
| Height: | 55 mm |
| Version: | Presence detector |
| Color: | other |
| Nominal voltage: | 36 V |
| RAL number (similar): | 9010 |
| Material: | Plastic |
| Mounting type: | Flush-mounted |
| Response brightness: | 5 to 2000 lx |
| Protection class (IP): | IP20 |
| Max. switching capacity: | 72 W |
| Voltage type: | AC/DC |
| Max. range to one side: | 8.0 m |
| Scan angle: | 180 ° |
| Suitable for wall mounting: | yes |
| Min. duty cycle: | 60 s |
| Max. Duty cycle: | 60 min |
| Creep-under protection/rear field monitoring: | yes |
| Temperature: | -25 to 50 °C |
| Adjustable response brightness: | yes |
| Adjustable response sensitivity: | yes |
| Max. presence range: | 25.17 m² |
| Max. Frontal range: | 6.0 m |
| Sensor type: | passive infrared |
| Optimal installation height: | 1.1 m |
| Surface finish: | matt |
| Material quality: | thermoplastic |
| Detection field diameter on floor: | 16 m |
| Number of switching zones: | 1 |
| Switch-off delay: | 300 s |
| Switch-on delay: | 30 s |
| Horizontal detection angle: | 90 to 180 ° |
| Halogen-free: | yes |
| Constant light control: | yes |
| HVAC control: | no |
| Forced shutdown: | yes |
| Animal corridor: | yes |
| Networkable: | no |
| Bypass switch: | no |
| Suitable for wireless transmission: | no |
| Remote control: | yes |
| With signal unit: | yes |
| Alarm function: | no |
| Teach function for response brightness: | yes |
| Dimming function with dimming insert: | no |
| Transparent: | no |
| With remote control: | no |
| Suitable for C load: | no |
| With DALI interface: | no |
| Forced switching on: | yes |
| Suitable for ceiling mounting: | no |
| Connection type: | Plug-in terminal |
| Antibacterial treatment: | no |
| Installation depth: | 34 mm |
| Installation diameter: | 60 mm |
| Min. depth of the device box: | 34 mm |
