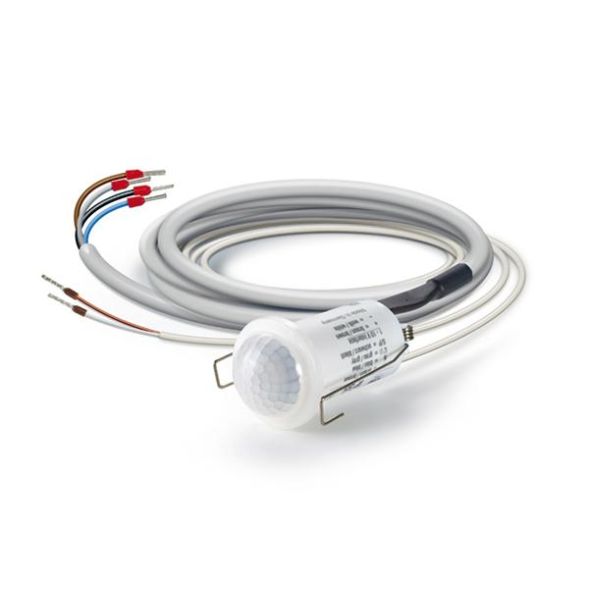

Presence detector with 360° detection range for ceiling installation, range of up to 8/12 m in diameter, for use in conjunction with building automation systems, operating voltage 12-36 V direct or alternating current (AC/DC), potential-free software-controlled switching output (normally closed/normally closed), detection display that can be switched on and off, silent switching up to max. 2 A, small, compact size for a mounting hole size of just 25 mm in diameter, fixed connection cable 60 cm long, new universal ESYLUX clamping technology for quick installation in suspended ceilings, lights, flush-mounted boxes, cabinets, etc., as ceiling installation in suspended, closed ceilings with enclosed spring clips or clamping ring, additional button input for individual manual switching, permanently stored factory program ensures immediate operational readiness
| Property | Value |
| Height: | 60 mm |
| Design: | Presence detector |
| Color: | other |
| Nominal voltage: | 36 V |
| Material: | Plastic |
| Mounting type: | Flush-mounted |
| Response brightness: | 5 to 2000 lx |
| Protection class (IP): | IP55 |
| Max. Switching capacity: | 72 W |
| Voltage type: | AC/DC |
| Max. range to one side: | 4.0 m |
| Scan angle: | 360 ° |
| Suitable for wall mounting: | no |
| Min. duty cycle: | 60 s |
| Max. Duty cycle: | 60 min |
| Creep-under protection/rear field monitoring: | yes |
| Temperature: | -25 to 50 °C |
| Adjustable response brightness: | yes |
| Adjustable response sensitivity: | yes |
| Max. presence range: | 7.08 m² |
| Max. Frontal range: | 2.5 m |
| Sensor type: | passive infrared |
| Optimal installation height: | 3.0 m |
| Surface finish: | matt |
| Material quality: | thermoplastic |
| Detection field diameter on floor: | 8 m |
| Number of switching zones: | 1 |
| Switch-off delay: | 300 s |
| Switch-on delay: | 30 s |
| Horizontal detection angle: | 180 to 360 ° |
| Halogen-free: | yes |
| Constant light control: | yes |
| HVAC control: | no |
| Forced shutdown: | yes |
| Animal corridor: | no |
| Networkable: | no |
| Bypass switch: | no |
| Suitable for wireless transmission: | no |
| Remote control: | yes |
| With signal unit: | yes |
| Alarm function: | no |
| Teach function for response brightness: | yes |
| Dimming function with dimming insert: | no |
| Transparent: | no |
| With remote control: | no |
| Suitable for C load: | no |
| With DALI interface: | no |
| Forced switching on: | yes |
| Suitable for ceiling mounting: | yes |
| Connection type: | crimping |
| Antibacterial treatment: | no |
| Diameter: | 33 mm |
| Installation depth: | 45 mm |
| Installation diameter: | 25 mm |
| Min. depth of device box: | 45 mm |
