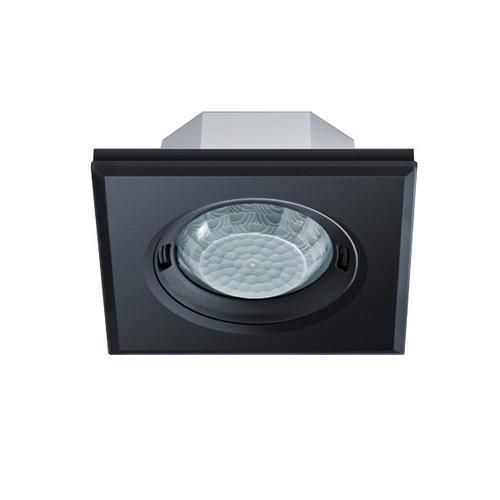

Designer motion detector, range approx. 8 m in diameter, 1 channel, switching, with zero-crossing switching optimized for LED lights, master/slave (parallel switching), flat optics with designer covers made of plastic: square, black - variably interchangeable (alternatively: glass, round, black), flush-mounted, IP20, length 77 mm x width 77 mm x height/depth 30 mm, detection angle 360 degrees, detection range up to 50 m², inrush current 78 A / 5 ms, permissible ambient temperature 0 °C...+50 °C
| Property | Value |
| Depth: | 77 mm |
| Width: | 77 mm |
| Height: | 30 mm |
| Design: | motion detector |
| Color: | black |
| Nominal voltage: | 230 V |
| RAL number (similar): | 9004 |
| Material: | plastic |
| Mounting type: | flush-mounted |
| Response brightness: | 5 to 2000 lx |
| Protection class (IP): | IP20 |
| Max. switching capacity: | 2300 W |
| Voltage type: | AC |
| Max. range to one side: | 4.0 m |
| Scan angle: | 360 ° |
| Suitable for wall mounting: | no |
| Min. duty cycle: | 60 s |
| Max. Duty cycle: | 30 min |
| Anti-creep protection/rear field monitoring: | yes |
| Temperature: | 0 to 50 °C |
| Adjustable response brightness: | yes |
| Adjustable response sensitivity: | yes |
| Max. range, frontal: | 3.0 m |
| Max. Inrush current: | 78 A |
| Sensor type: | passive infrared |
| Optimal installation height: | 2.5 m |
| Surface finish: | matt |
| Material quality: | thermoplastic |
| Detection field diameter on floor: | 8 m |
| Number of switching zones: | 1 |
| Switch-on delay: | 30 s |
| Detection angle horizontal: | 180 to 360 ° |
| Frequency: | 50 Hz |
| Halogen-free: | no |
| Constant light control: | no |
| HVAC control: | no |
| Forced shutdown: | yes |
| Animal corridor: | no |
| Networkable: | no |
| Bypass switch: | no |
| Suitable for wireless transmission: | no |
| Remote controllable: | yes |
| With signal unit: | yes |
| Alarm function: | no |
| Teach function for response brightness: | no |
| Dimming function with dimming insert: | no |
| Transparent: | no |
| With remote control: | no |
| Suitable for C load: | yes |
| With DALI interface: | no |
| Forced switching on: | yes |
| Suitable for ceiling mounting: | yes |
| Connection type: | Plug-in terminal |
| Antibacterial treatment: | no |
| Installation depth: | 24 mm |
| Installation diameter: | 60 mm |
| Min. depth of device box: | 24 mm |
Features
Bridging switch
No
With signal unit
Yes
Number of switching zones
1
Response brightness
5 to 2000 lx
Forced shutdown
Yes
Max. inrush current
78 A
Scanning angle
360 °
Forced switching on
Yes
HAB
MD-Flat 360I/8 Square Black
Manufacturer
HAN
EP10428081
GTIN
4015120428081
Dimming function with dimming insert
No
Alarm function
No
Connection type
Plug-in terminal
Response sensitivity adjustable
Yes
Response brightness adjustable
Yes
Antibacterial treatment
No
Version
Motion detector
Surface finish
Frosted
Width
77 mm
Installation diameter
60 mm
Installation depth
24 mm
Detection field diameter on floor
8m
Detection angle horizontal
180 to 360 °
Color
Remote controllable
Yes
Frequency
50Hz
Suitable for C-load
Yes
Suitable for ceiling mounting
Yes
Suitable for wall mounting
No
Suitable for wireless transmission
No
HVAC control
No
Halogen free
No
Height
30 mm
Constant light control
No
Max. duty cycle
30 min
Max. range frontal
3.0m
Max. range to one side
4.0m
Max. switching capacity
2300W
Min. duty cycle
60s
Min. depth of the device box
24 mm
With DALI interface
No
With remote
No
Mounting type
Flush-mounted
Nominal voltage
230V
Optimal mounting height
2.5m
RAL number (similar)
9004
IP protection)
IP20
Sensor type
Passive infrared
Voltage type
AC
Teach function for response brightness
No
Temperature
0 to 50 °C
Depth
77 mm
Animal corridor
No
Transparent
No
Creep protection/rear field monitoring
Yes
Networkable
No
Material
Plastic
Material quality
Thermoplastic
