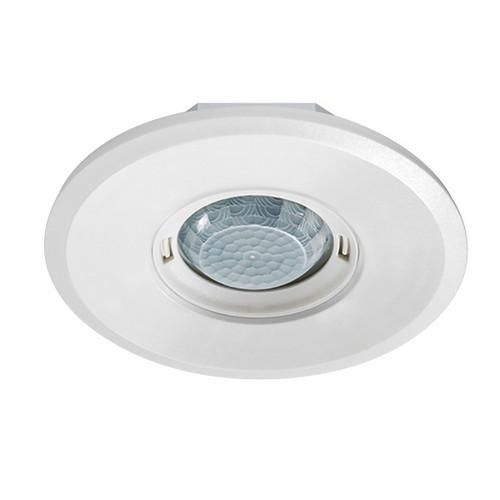

KNX designer ceiling-mounted presence detector with 360° detection range. Range of approx. 8 m in diameter at a recommended installation height of 3 m (maximum installation height 5 m). Can be used in the KNX (EIB) bus system, TP (2-wire bus) in conjunction with other KNX components. Parameter and function setting via the ETS (engineering tool software). Flat optics with designer covers made of plastic (Ø 104mm): round, white - variably interchangeable, protection class IP20, dimensions height/depth 30 mm, Ø 104 mm, detection angle 360°, detection range across Ø 8 m, detection area up to 50 m², permissible ambient temperature 5 °C...+35 °C
| Property | Value |
| Number of channels: | 3 |
| Optimal installation height: | 2.5 m |
| Color: | white |
| Design: | Presence detector |
| Mounting type: | Flush-mounted |
| KNX bus system: | yes |
| Max. range to one side: | 4.0 m |
| Max. range frontal: | 3.0 m |
| Horizontal detection angle: | 180 to 360 ° |
| Min. Duty cycle: | 30 s |
| Max. Duty cycle: | 720 min |
| Vertical detection angle: | 58 to 116 ° |
| Detection field diameter on floor: | 8 m |
| Response brightness adjustable: | yes |
| Teach function for response brightness: | no |
| Radio bus system: | no |
| LON bus system: | no |
| Powernet bus system: | no |
| Material: | plastic |
| Material quality: | thermoplastic |
| Surface finish: | matt |
| RAL number (similar): | 9010 |
| Crawl-under protection/rear field monitoring: | yes |
| Animal corridor: | no |
| Transparent: | no |
| KNX radio bus system: | no |
| Min. depth of the device box: | 24 mm |
Features
Number of channels
3
HAB
PD-Flat 360I/8 Large Round White Knx
Manufacturer
HAN
EP10428685
GTIN
4015120428685
Response brightness adjustable
Yes
Version
Presence detector
Surface finish
Frosted
Bus system radio bus
No
KNX bus system
Yes
KNX radio bus system
No
LON bus system
No
Powernet bus system
No
Detection field diameter on floor
8m
Detection angle horizontal
180 to 360 °
Color
Max. duty cycle
720 min
Max. range frontal
3.0m
Max. range to one side
4.0m
Min. duty cycle
30s
Min. depth of the device box
24 mm
Mounting type
Flush-mounted
Optimal mounting height
2.5m
RAL number (similar)
9010
Teach function for response brightness
No
Animal corridor
No
Transparent
No
Creep protection/rear field monitoring
Yes
Material
Plastic
Material quality
Thermoplastic
