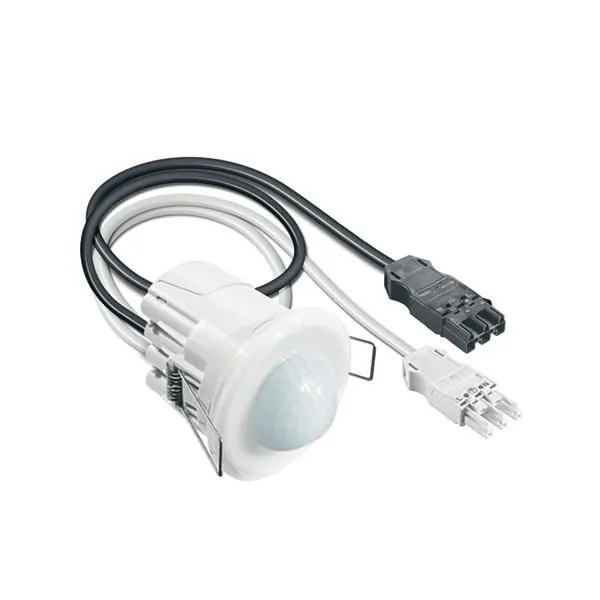

Ceiling-mounted motion detector with 360° detection range for switching the lighting as needed, thus noticeably reducing energy costs. Range of up to 8 m in diameter for use in small rooms, passageways, toilets, small offices, corridors. 1.5 m pre-assembled WAGO WINSTA® supply and discharge cable. 16 A high-performance relay (tungsten pre-contact), especially suitable for switching capacitive loads such as electronic ballasts, parallel-compensated fluorescent lamps, compact fluorescent lamps, energy-saving lamps. Permanent factory program for immediate operational readiness. Simple programming via remote control with 'blue mode' technology. Small size with a ceiling cutout of 68 mm makes the detector unobtrusive and yet effective in use. Additional button input for individual manual switching of the lighting. Extension of the detection range by parallel connection of max. 8 detectors. Targeted masking of areas using the enclosed lens mask.
| Property | Value |
| Height: | 24 mm |
| Design: | motion detector |
| Colour: | other |
| Nominal voltage: | 230 V |
| Material: | Plastic |
| Mounting type: | flush-mounted |
| Response brightness: | 5 to 2000 lx |
| Protection class (IP): | IP40 |
| Max. Switching capacity: | 2300 W |
| Voltage type: | AC |
| Max. range to one side: | 4.0 m |
| Scan angle: | 360 ° |
| Suitable for wall mounting: | no |
| Min. duty cycle: | 60 s |
| Max. Duty cycle: | 30 min |
| Anti-creep protection/rear field monitoring: | yes |
| Temperature: | -25 to 50 °C |
| Adjustable response brightness: | yes |
| Adjustable response sensitivity: | yes |
| Max. frontal range: | 3.0 m |
| Max. Inrush current: | 800 A |
| Sensor type: | passive infrared |
| Optimal installation height: | 3.0 m |
| Surface finish: | matt |
| Material quality: | thermoplastic |
| Detection field diameter on floor: | 8 m |
| Number of switching zones: | 1 |
| Switch-on delay: | 30 s |
| Detection angle horizontal: | 180 to 360 ° |
| Frequency: | 50 Hz |
| Halogen-free: | yes |
| Constant light control: | no |
| HVAC control: | no |
| Forced shutdown: | yes |
| Animal corridor: | no |
| Networkable: | no |
| Bypass switch: | yes |
| Suitable for wireless transmission: | no |
| Remote control: | yes |
| With signal unit: | yes |
| Alarm function: | no |
| Teach function for response brightness: | yes |
| Dimming function with dimming insert: | no |
| Transparent: | yes |
| With remote control: | no |
| Suitable for C load: | yes |
| With DALI interface: | no |
| Forced switching on: | yes |
| Suitable for ceiling mounting: | yes |
| Connection type: | other |
| Antibacterial treatment: | no |
| Diameter: | 82 mm |
| Installation depth: | 67 mm |
| Installation diameter: | 68 mm |
| Min. depth of device box: | 67 mm |
