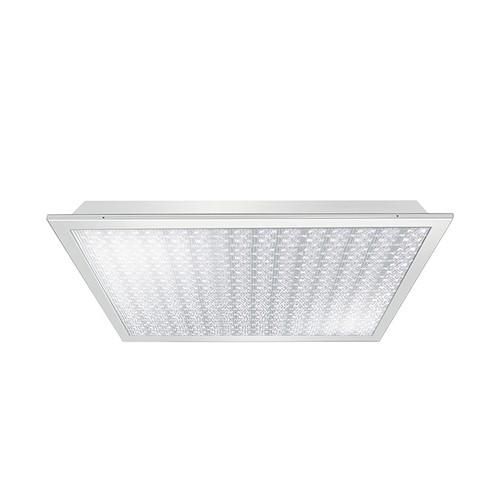

LED light with transparent, microprismatic diffuser. Can be used as a recessed ceiling light for system ceilings with concealed or visible support rails for system dimensions 625 x 625 mm (Please note special features and possible restrictions of the ceiling system manufacturer!). Light for ESYLUX Light Control via RJ45 plug with ESYLUX Smartdriver or DALI-2 Driver Set or ON/OFF Driver Set (not included in delivery). Color temperature approx. 4000 K (neutral white). Very good light quality, suitable for computer workstations in accordance with EN 12464-1. Rated service life L80B50 at 25 °C: 70,000 h.
| Property | Value |
| Max. System power: | 33.0 W |
| Rated luminous flux according to IEC 62722-2-1: | 4600 lm |
| Suitable for number of lamps: | 1 |
| Length: | 620 mm |
| Width: | 620 mm |
| Height/depth: | 65 mm |
| Protection rating (IP): | IP20 |
| Protection class: | III |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 42 V |
| Housing color: | white |
| Housing material: | steel |
| Color temperature: | 4000 K |
| Impact resistance: | IK02 |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Rated service life L80/B10 at 25 °C: | 65000 h |
| Suitable for wall mounting: | no |
| Voltage type: | DC |
| With motion detector: | no |
| Beam angle: | extremely wide beam>80° |
| With light source: | yes |
| Light source: | LED replaceable |
| Rated ambient temperature according to IEC62722-2-1: | 0 to 40 °C |
| Socket: | other |
| With operating device: | yes |
| Cover material: | Structured plastic |
| Light distributor: | diffuser lens/optics/panel |
| Installation height/depth: | 140 mm |
| Without dimming function: | no |
| Installation width: | 625 mm |
| Light emission: | direct |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Operating device: | LED operating device, current-controlled |
| Suitable for recessed mounting: | no |
| Light color: | white |
| Suitable for computer workstations according to EN 12464-1: | yes |
| Suitable for strip lighting configuration: | no |
| Suitable for pendant suspension: | no |
| Suitable for surface mounting: | no |
| Suitable for emergency lighting: | no |
| Installation length: | 625 mm |
| Design of the grid: | without |
| Covering of the luminaire with thermal insulation material possible: | no |
| DMX dimming: | no |
| Dimming DSI: | no |
| With air slots: | no |
| Dimming LineSwitch: | no |
| Dimming potentiometer (device-integrated): | no |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | yes |
| Dimming DALI: | no |
| Dimming Mains voltage modulation: | no |
| Dimming trailing edge phase control: | no |
| Dimming leading edge phase control: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming depending on operating device: | yes |
| Highest energy efficiency class of the replaceable lamp: | E |
| Rated service life L70/B50 at 25 °C: | 110000 h |
| Rated service life L90/B10 at 25 °C: | 35000 h |
| Glow wire test according to IEC 60695-2-11: | 850 °C - 30 s |
| Luminaire luminous efficacy: | 139 lm/W |
| Type of wiring: | Termination |
Features
Rated service life L90/B10 at 25 °C
35000 h
HAB
CELINE-2 625 DDP TR 4400 840 IP20 ELC
Manufacturer
HAN
EQ10132407
GTIN
4015120132407
Covering the luminaire with thermal insulation material possible
No
Type of wiring
Diploma
Execution of the grid
Without
Rated lifetime L70/B50 at 25 °C
110000 hours
Rated lifetime L80/B10 at 25 °C
65000 hours
Rated luminous flux according to IEC 62722-2-1
4600lm
Rated ambient temperature according to IEC62722-2-1
0 to 40 °C
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
Yes
Width
620 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
Yes
Dimming manufacturer-specific
Yes
Dimming with push button
No
Dimming programmable
No
Installation width
625 mm
Installation height/depth
140 mm
Installation length
625 mm
Color temperature
4000K
Color rendering index CRI
80-89
Version
Other
Suitable for surface mounting
No
Suitable for ceiling mounting
Yes
Suitable for flush mounting
No
Suitable for number of lamps
1
Suitable for light strip configuration
No
Suitable for emergency lighting
No
Suitable for pendulum suspension
No
Suitable for wall mounting
No
Housing color
White
Glow wire test according to IEC 60695-2-11
850 °C - 30 s
Height/Depth
65 mm
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
139lm/W
Lamps
LED replaceable
Light emission
Direct
Light color
White
Light distributor
Diffuser lens/optics/panel
Light distribution
Symmetrical
Length
620 mm
Max. system performance
33.0W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
With air slots
No
Nominal voltage
42V
Without dimming function
No
Impact resistance
IK02
IP protection)
IP20
Protection class
III
Voltage type
DC
Cover material
Plastic structured
Housing material
Steel
