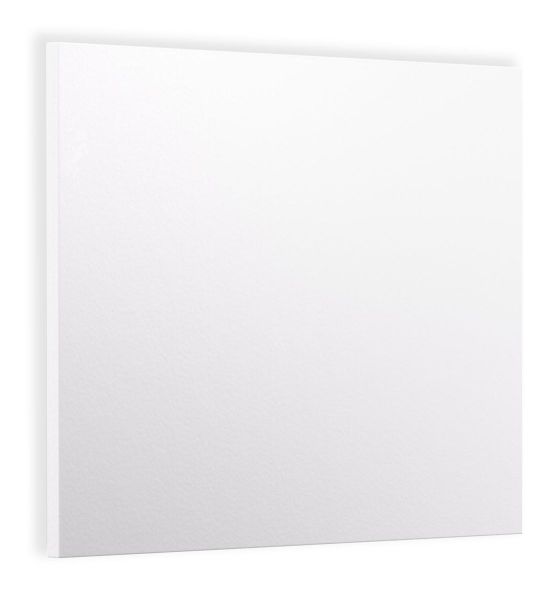

The LAVA BASIC-DM is an infrared heater that is only 22 mm deep and is suitable for heating both the ceiling and the wall. It generates infrared radiant heat using a special magnetic field-free heating element. Unlike conventional heaters, it heats not only the air, but all people and objects in the room and is suitable for both full heating and zone heating. This saves heating costs and creates a pleasant, healthy room climate. Mounted on the ceiling, in false ceilings or on the wall, the devices are ideal for full or zone heating. When installed in the false ceiling, the heater is fully integrated into the ceiling. Ceiling mounting allows the space to be used optimally and also prevents damage from bumping into the heater. Available in the color traffic white RAL9016 and in 5 power levels. Finely structured surface, protection class: IP 21, surface temperature: max. 120 °C, test mark: TÜV compliant, connecting cable: 1 m, 3 x 1.5 mm without plug and without plug & play connection, 230 V. The devices are ideal as full or zone heating. When installed in the false ceiling, the heater is fully integrated into the ceiling. Ceiling mounting allows the space to be used optimally and also prevents damage from bumping into the heater. Available in the color traffic white RAL9016 and in 6 outputs (350-1500 W). Finely structured surface, protection class: IP 21, surface temperature: max. 120 °C, test mark: TÜV compliant, connection cable: 1 m, 3 x 1.5 mm without plug and without plug & play connection.
Feature | Value |
Power: | 500 W |
Height: | 620 mm |
Width: | 900 mm |
Depth: | 52 mm |
With timer: | no |
Color: | white |
Design: | radiation panel |
Material of the housing: | steel |
Material of the heating element: | steel |
With decorative cover: | no |
Mounting type: | horizontal/vertical |
Freestanding: | no |
Weight: | 10 kg |
Protection class (IP): | IP21 |
Protection class: | I |
Digital display: | no |
With presence detector: | no |
Bus-capable: | no |
Learning capability: | no |
Consumption display: | no |
Open window detection: | no |
Operation via app: | no |
Programmable with remote control: | no |
Number of supported pilot wire commands: | without |
