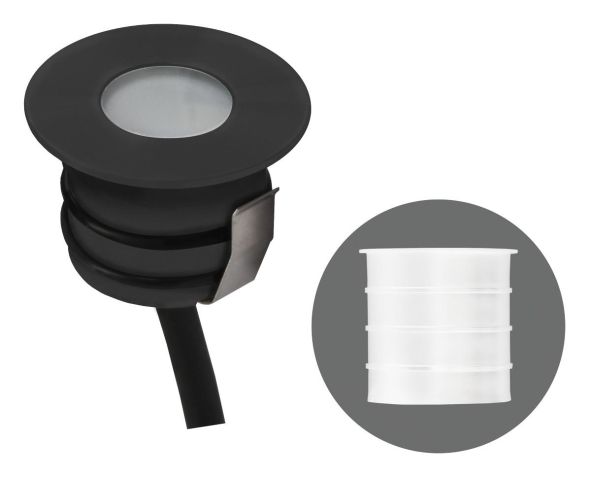

The lamp body is made of solid aluminum, while the cover plate is made of stainless steel and powder-coated. Due to its performance, the lamp is perfect for orientation lighting, patio lighting and much more. The installation sleeve included in the delivery can be used optionally for installation, whereby the installation depth remains unchanged, the hole cutout changes to 40mm. Since the LED chip is permanently installed, there are no additional costs for light sources.
| Property | Value |
| Nominal voltage: | 12 V |
| With light source: | yes |
| With control gear: | no |
| Installation diameter: | 35 mm |
| Housing color: | anthracite |
| Control gear: | LED control gear voltage controlled |
| Outer diameter: | 45 mm |
| Light source: | LED not replaceable |
| Protection class (IP): | IP65 |
| Protection class: | III |
| Electrical connection with plug-in system: | no |
| Cover material: | opal glass |
| Adjustable: | no |
| Light distribution: | symmetrical |
| Roll-over: | no |
| Rated luminous flux according to IEC 62722-2-1: | 36 lm |
| Color temperature: | 3000 K |
| Light color: | white |
| Max. load: | 150 kg |
| Voltage type: | DC |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming Potentiometer (device-integrated): | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without Dimming function: | no |
| Beam angle: | extremely wide beam>80° |
| Max. System power: | 0.6 W |
| Height/depth: | 33 mm |
| Installation height/depth: | 40 mm |
| Number of poles: | 2 |
| Connection type: | other |
| Housing material: | aluminum |
| Replaceable operating device: | no |
| Constant luminous flux control: | no |
| Adjustable color temperature: | no |
| Adjustable luminous flux: | no |
| Beam angle adjustable: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | no |
Features
HAB
0.6W 3000K 36lm IP65 anthracite
Manufacturer
HAN
441520A
GTIN
4037293027489
Connection type
Other
Beam angle adjustable
No
Replaceable operating device
No
Outer diameter
45 mm
Rated luminous flux according to IEC 62722-2-1
36lm
Operating device
LED control gear voltage controlled
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation diameter
35 mm
Installation height/depth
40 mm
Electrical connection with plug-in system
No
Color temperature
3000K
Color temperature adjustable
No
Housing color
Anthracite
Height/Depth
33 mm
IFTTT support available
No
Adjustable
No
Compatible with Amazon Alexa
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Constant luminous flux control
No
Lamps
LED not replaceable
Light color
White
Luminous flux adjustable
No
Light distribution
Symmetrical
Max. load
150 kg
Max. system performance
0.6W
With operating device
No
With light source
Yes
Nominal voltage
12V
Without dimming function
No
Number of poles
2
IP protection)
IP65
Protection class
III
Voltage type
DC
Cover material
Glass opal
Housing material
Aluminum
Rollover
No
