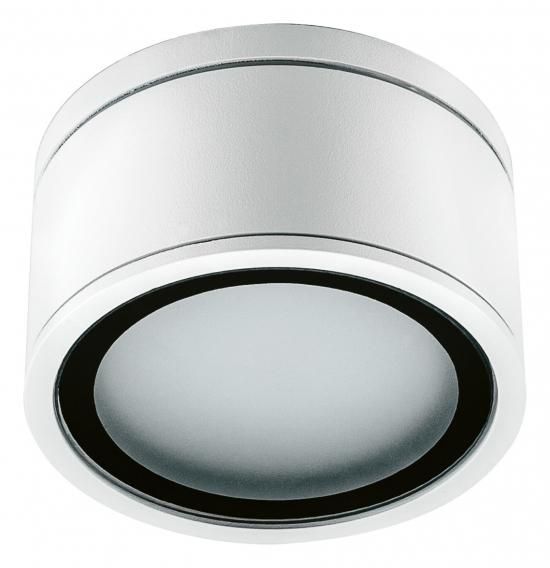

The surface-mounted light for wall and ceiling mounting can be used both indoors and outdoors. Effect lighting, room lighting, accent lighting and much more can be implemented with this light. The high-voltage socket means that different lamps can be used in the light for a wide range of lighting requirements, meaning there are almost no limits to the design options. Since the light can be connected directly to the 230V supply line, there are no additional costs for operating devices. Only lamps up to a maximum of 11W, but not halogen lamps, can be used in the light.
| Property | Value |
| Number of LM: | 1 |
| Height/Depth: | 63 mm |
| Protection rating (IP): | IP54 |
| Protection class: | I |
| Luminaire with limited surface temperature D-mark according to EN 60598-2-24: | no |
| Nominal voltage: | 220 to 240 V |
| Housing colour: | white |
| Material of Housing: | Aluminium |
| Impact resistance: | IK05 |
| Suitable for ceiling mounting: | yes |
| Outer diameter: | 108 mm |
| Voltage type: | AC |
| With motion detector: | no |
| With light source: | no |
| Socket: | GX53 |
| Connection type: | Screw terminal |
| With operating device: | no |
| Cover material: | opal glass |
| Without Dimming function: | no |
| Light emission: | direct |
| With light sensor: | no |
| Operating device: | not required |
| Suitable for recessed mounting: | no |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for light strip configuration: | no |
| Suitable for pendant suspension: | no |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Design of the Grid: | without |
| Covering the light with thermal insulation material possible: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| With air slots: | no |
| Dimming LineSwitch: | no |
| Dimming Potentiometer (integrated in the device): | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| DALI dimming: | no |
| Mains voltage modulation dimming: | no |
| Trailing edge dimming: | no |
| Leading edge dimming: | no |
| Programmable dimming: | no |
| RF dimming: | no |
| Sine wave reduction dimming: | no |
| Touch and dim dimming: | no |
| Zigbee dimming: | no |
| Dimming with Push button: | no |
| Suitable for lamp power: | 0.1 to 11 W |
| Type of wiring: | suitable for through wiring |
| Number of poles: | 3 |
| Surface protection housing: | powder-coated |
| Replaceable operating device: | no |
| DALI-2 dimming: | no |
| Integrated emergency power supply: | no |
| Constant luminous flux control: | no |
| Operation via Bluetooth: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | no |
Features
Number of LM
1
HAB
Round. white IP54 GX53
Manufacturer
HAN
487001N
GTIN
4037293014526
Covering the luminaire with thermal insulation material possible
No
Connection type
Screw terminal
Type of wiring
Suitable for through wiring
Execution of the grid
Without
Replaceable operating device
No
Outer diameter
108 mm
Operation via Bluetooth
No
Operating device
Not required
Suitable for computer workstations according to EN 12464-1
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Version
GX53
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
No
Suitable for lamp power
0.1 to 11W
Suitable for light strip configuration
No
Suitable for emergency lighting
No
Suitable for pendulum suspension
No
Housing color
White
Height/Depth
63 mm
IFTTT support available
No
Compatible with Amazon Alexa
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Constant luminous flux control
No
Luminaire with limited surface temperature D-mark according to EN 60598-2-24
No
Light emission
Direct
With operating device
No
With motion detector
No
With light source
No
With light sensor
No
With air slots
No
Nominal voltage
220 to 240 V
Emergency power supply integrated
No
Surface protection housing
Powder coated
Without dimming function
No
Number of poles
3
Impact resistance
IK05
IP protection)
IP54
Protection class
I
Voltage type
AC
Cover material
Glass opal
Housing material
Aluminum
