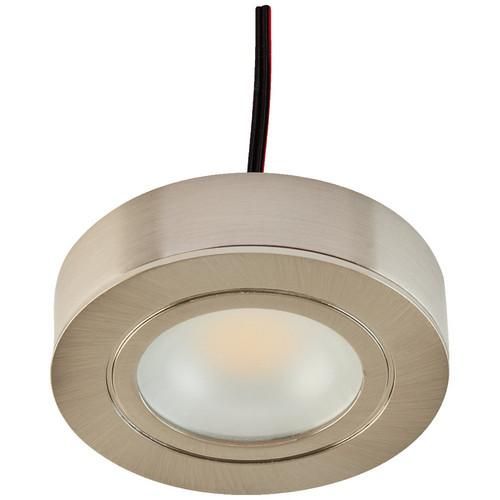

The light can be installed as a recessed or surface-mounted light thanks to the attachment housing included in the delivery. Since it also has the MM marking, the light can be used for countless indoor applications. The light has a 2m long connection cable with free wire ends. Since it is a constant current light, several lights must of course be connected in series. The housing color is satin chrome.
| Property | Value |
| System power: | 3 W |
| Luminous flux: | 200 lm |
| Height/depth: | 14 mm |
| Protection rating (IP): | IP20 |
| Protection class: | III |
| Luminaire with limited surface temperature D-mark according to EN 60598-2-24: | no |
| Housing color: | Chrome |
| Housing material: | Aluminum |
| Color temperature: | 3000 K |
| Suitable for ceiling mounting: | yes |
| Outer diameter: | 65 mm |
| With motion detector: | no |
| Beam angle: | medium beam 21-40° |
| With light source: | yes |
| Light source: | LED not replaceable |
| Connection type: | other |
| With operating device: | no |
| Cover material: | opal plastic |
| Installation height/depth: | 15 mm |
| Without Dimming function: | no |
| Light emission: | direct |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Operating device: | LED operating device, current-controlled |
| Suitable for recessed mounting: | yes |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for light strip configuration: | no |
| Suitable for pendant suspension: | no |
| Suitable for Surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Installation diameter: | 55 mm |
| Covering of the luminaire with thermal insulation material possible: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| With air slots: | no |
| Dimming LineSwitch: | no |
| Dimming Potentiometer (device-integrated): | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Luminous efficacy: | 66 lm/W |
| Number of poles: | 2 |
| Nominal current: | 350 mA |
| Replaceable operating device: | yes |
| Dimming DALI-2: | no |
| Integrated emergency power supply: | no |
| Constant luminous flux control: | no |
| Luminous intensity: | 75 cd |
| Color temperature adjustable: | no |
| Luminous flux adjustable: | no |
| Beam angle adjustable: | no |
| Operation via Bluetooth: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | no |
Features
HAB
Chrome satin 3W 350mA IP20 warm white
Manufacturer
HAN
89013
GTIN
4037293011112
Covering the luminaire with thermal insulation material possible
No
Connection type
Other
Beam angle
Medium beam 21-40°
Beam angle adjustable
No
Replaceable operating device
Yes
Outer diameter
65 mm
Operation via Bluetooth
No
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation diameter
55 mm
Installation height/depth
15 mm
Color temperature
3000K
Color temperature adjustable
No
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for light strip configuration
No
Suitable for emergency lighting
No
Suitable for pendulum suspension
No
Housing color
Chrome
Height/Depth
14 mm
IFTTT support available
No
Compatible with Amazon Alexa
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Constant luminous flux control
No
Luminaire with limited surface temperature D-mark according to EN 60598-2-24
No
Luminaire luminous efficacy
66lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
200lm
Luminous flux adjustable
No
Light intensity
75 cd
Light distribution
Symmetrical
With operating device
No
With motion detector
No
With light source
Yes
With light sensor
No
With air slots
No
Rated current
350mA
Emergency power supply integrated
No
Without dimming function
No
Number of poles
2
IP protection)
IP20
Protection class
III
System performance
3W
Cover material
Plastic opal
Housing material
Aluminum
