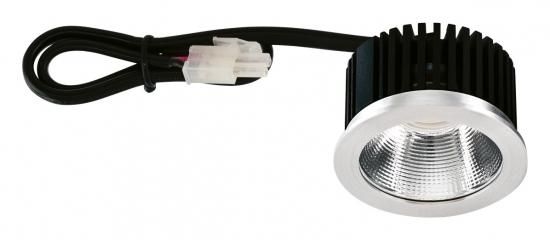

The LED insert can be used as a replacement for conventional halogen or LED lamps in numerous lights with the appropriate installation depth. It must be noted that the heat sink has a diameter of 45mm throughout. The 15cm long connection cable is equipped with an AMP plug for easy installation. The matching 6-way distributor (P-LEDAMP006), which is specially designed for constant current, is optionally available. If a dimmable power supply is used, the insert can of course also be dimmed.
| Property | Value |
| Lamp power: | 6 W |
| Color temperature: | 6000 K |
| Luminous flux: | 740 lm |
| Protection class (IP): | IP20 |
| Height: | 32 mm |
| Shape: | round |
| Color: | white |
| Suitable for traffic information board signaling: | no |
| Suitable for traffic lights: | no |
| Suitable for Variable message signs: | no |
| Suitable for rail traffic: | no |
| Number of LEDs: | 1 |
| Diameter: | 50 mm |
| Luminous intensity: | 2162 cd |
| Suitable for constant current: | yes |
| Suitable for general lighting: | yes |
| Suitable for constant voltage: | no |
| External operating device required: | yes |
| Operating current: | 350 mA |
| Light color according to EN 12464-1: | daylight white>5300 K |
| Flexible: | no |
| Specific light output: | 123 lm/W |
| Beam angle: | 38 ° |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | no |
Features
Suitable for constant current
Yes
Suitable for constant voltage
No
HAB
6W 6000K 38° 646lm AMP plug
Manufacturer
HAN
C513500601
GTIN
4037293405720
Beam angle
38°
Diameter
50 mm
Color
Color temperature
6000K
Flexible
No
Shape
Around
Height
32 mm
IFTTT support available
No
Compatible with Amazon Alexa
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Lamp power
6W
Luminous flux
740lm
Light intensity
2162 cd
IP protection)
IP20
