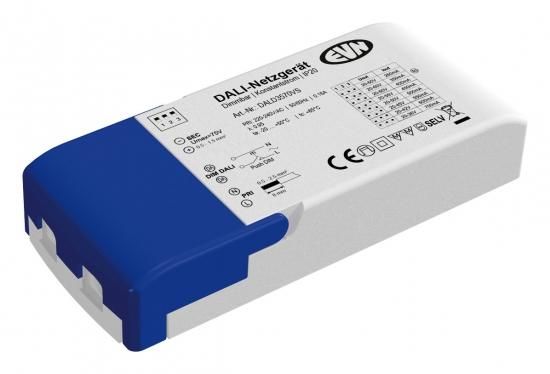

DALI dimmer receiver with integrated power supply for Unicolor lights with automatic DALI address setting. An additional operating device is not required as the receiver also functions as such. The receiver can also be dimmed optionally via Push-L (as 1-channel). Connections: 1x input for DALI bus or Push-L, 1x input for 200-240V/AC and 1x output for 260mA-700mA. The screw terminals are suitable for cables of 0.5mm - 2.5mm primary and 0.5mm - 1.5mm secondary. Technical data: ta: -20°C - 50°C, tc: 85°C, power factor: 0.95. The output current to be used can be set using a dip switch. The following settings with the respective power are possible: 260mA (5.2-15.6W), 350mA (7-21W), 400mA (8-24W), 450mA (9-24.8W), 500mA (10-25W), 550mA (11-24.8W), 600mA (12-25.2W), 700mA (14-25.2W). Protocol: DT6, DALI2.
| Property | Value |
| Number of color channels: | 1 |
| Type of control: | DALI |
| Construction: | yes |
| Version: | dynamic |
| Input voltage: | 200 to 240 V |
| Length: | 119 mm |
| Width: | 52 mm |
| Height: | 23 mm |
| Protection class (IP): | IP20 |
| DIN rail mounting: | no |
| Built-in: | yes |
| Suitable for outdoor use: | no |
| Housing: | Plastic housing |
| Max. Output current: | 0.7 A |
| Programmable: | yes |
| Protection class: | II |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | no |
