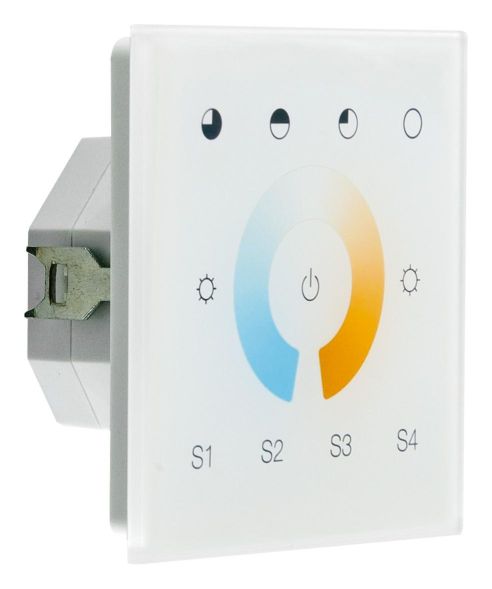

EVN DALWPWWCW DALI Tunable-White (white) 100-240V/AC wall panel

The DALI wall panel can be used to control consumers with variable color temperatures. Since this is a tunable white wall panel, two DALI addresses are required. The color temperature is set using the touch wheel. In addition to the four preset dimming levels, it is also possible to save up to four lighting scenes. Since the wall panel functions as a BUS transmitter, the use of the DALI base station is optional, but not absolutely necessary. When used as a BUS transmitter (without a DALI base station), the connection is made to 230V, whereby a maximum of 50 participants can be controlled via one wall panel. In addition, 3 further wall panels can be integrated into the system, which are operated via the BUS voltage of the first wall panel (BUS transmitter). When operated with the DALI base station, a maximum of 4 wall panels can be used per base station. The wall panels must not be operated via 230V, but only via the BUS voltage of the DALI base station. It is also possible to operate two wall panels in one system via 230V, with only one of the wall panels acting as a BUS transmitter. This means that up to 100 participants (50 per panel) can be controlled. Two additional wall panels can be integrated into this system via the BUS voltage, whereby the number of controllable participants remains unchanged. Installation on switch boxes is possible without any problems. Please note: The panel sends a broadcast command which switches all components within a BUS system to linear dimming. This function cannot be switched off.
