Description

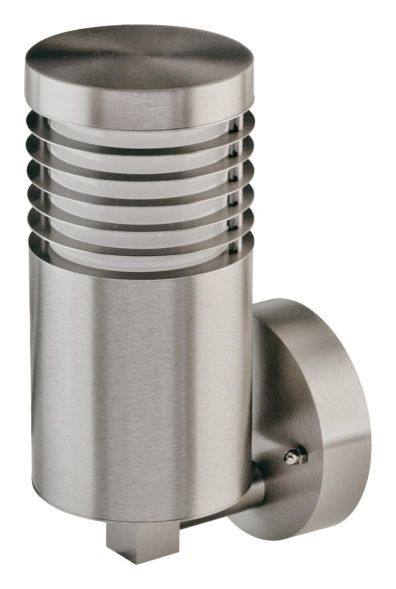

Solid wall light, elegant and high quality, made of stainless steel. Energy-saving lamps up to max. 15W can be used, whereby the diameter must not exceed 45mm and the height including the base must not exceed 120mm. Base dimensions: xD: 111mm x 28mm. The bollard lights (ELR210 and ELR623) are also available to match the wall light.
| Property | Value |
| Number of LM: | 1 |
| Length: | 247 mm |
| Height/Depth: | 140 mm |
| Protection rating (IP): | IP44 |
| Protection class: | I |
| Luminaire with limited surface temperature D-mark according to EN 60598-2-24: | no |
| Nominal voltage: | 230 V |
| Housing colour: | stainless steel |
| Material of Housing: | Stainless steel |
| Suitable for ceiling mounting: | no |
| Outer diameter: | 102 mm |
| Voltage type: | AC |
| With motion detector: | no |
| With light source: | no |
| Socket: | E27 |
| Connection type: | Screw terminal |
| With operating device: | no |
| Cover material: | Plastic opal |
| Without Dimming function: | no |
| Light emission: | direct |
| With light sensor: | no |
| Operating device: | not required |
| Suitable for recessed mounting: | no |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for light strip configuration: | no |
| Suitable for pendant suspension: | no |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Cover of the luminaire with Thermal insulation material possible: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| With air slots: | no |
| Dimming LineSwitch: | no |
| Dimming Potentiometer (device-integrated): | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Suitable for Lamp power: | 0.1 to 15 W |
| Number of poles: | 3 |
| Replaceable operating device: | no |
| DALI-2 dimming: | no |
| Integrated emergency power supply: | no |
| Constant luminous flux control: | no |
| Operation via Bluetooth: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | no |
Features
Number of LM
1
HAB
Stainless steel rigid E27 15W
Manufacturer
HAN
ELR260
GTIN
4037293360517
Covering the luminaire with thermal insulation material possible
No
Connection type
Screw terminal
Replaceable operating device
No
Outer diameter
102 mm
Operation via Bluetooth
No
Operating device
Not required
Suitable for computer workstations according to EN 12464-1
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Version
E27
Suitable for surface mounting
Yes
Suitable for ceiling mounting
No
Suitable for flush mounting
No
Suitable for lamp power
0.1 to 15W
Suitable for light strip configuration
No
Suitable for emergency lighting
No
Suitable for pendulum suspension
No
Housing color
Stainless steel
Height/Depth
140 mm
IFTTT support available
No
Compatible with Amazon Alexa
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Constant luminous flux control
No
Luminaire with limited surface temperature D-mark according to EN 60598-2-24
No
Light emission
Direct
Length
247 mm
With operating device
No
With motion detector
No
With light source
No
With light sensor
No
With air slots
No
Nominal voltage
230V
Emergency power supply integrated
No
Without dimming function
No
Number of poles
3
IP protection)
IP44
Protection class
I
Voltage type
AC
Cover material
Plastic opal
Housing material
Stainless steel
