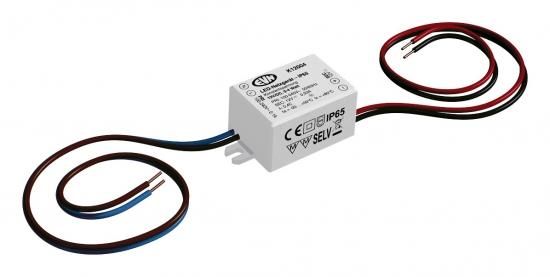

Due to its small size, the LED power supply can be installed perfectly in switch boxes or in difficult space conditions. The connecting cables are 17cm long on the primary side and 17cm long on the secondary side. Technical data: Supply voltage: 100-240V/AC, ta: -20°C - 50°C, tc: 80°C, power factor: 0.40.
| Property | Value |
| Output power: | 0.1 to 4 W |
| Protection class (IP): | IP65 |
| Output voltage: | 12 V |
| Protection class: | II |
| Length: | 54 mm |
| Width: | 27 mm |
| Height: | 21 mm |
| Design: | static |
| Housing: | plastic housing |
| Suitable for Outdoor use: | yes |
| Suitable for constant voltage: | yes |
| Suitable for constant current: | no |
| Suitable for direct voltage (primary side): | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DSI: | no |
| Dimming DMX: | no |
| Dimming potentiometer (device-integrated): | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
| Constant luminous flux control: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | no |
Features
Suitable for constant current
No
Suitable for constant voltage
Yes
Output power
0.1 to 4W
Suitable for direct voltage (primary side)
No
HAB
12Volts 4W
Manufacturer
HAN
K12004
GTIN
4037293013246
Version
Static
Output voltage
12V
Width
27 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Suitable for outdoor use
Yes
Housing
Plastic housing
Height
21 mm
IFTTT support available
No
Compatible with Amazon Alexa
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Constant luminous flux control
No
Length
54 mm
Without dimming function
Yes
IP protection)
IP65
Protection class
II
