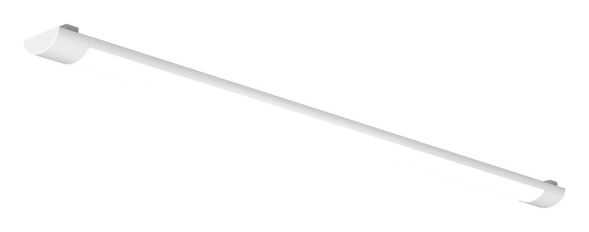

Due to its high light output, the LED light bar can easily be used as the main lighting for numerous rooms. Thanks to its elegant design, it blends harmoniously into any environment. The cable is fed into the terminal compartment, which is discreetly housed behind the side cover, from the back. If there is no connection directly on the ceiling, the light can be mounted using the spacers provided, which allows the cable to be fed in from the side. The spacers have a mounting height of 10mm.
| Property | Value |
| Max. System power: | 35 W |
| Nominal voltage: | 220 to 240 V |
| Luminous flux: | 3841 lm |
| Color temperature: | 4000 K |
| With control gear: | yes |
| With light source: | yes |
| Width: | 80 mm |
| Length: | 1197 mm |
| Housing color: | white |
| Control gear: | LED control gear, current-controlled |
| Protection class (IP): | IP20 |
| Protection class: | I |
| Light source: | LED not replaceable |
| Electrical connection with plug-in system: | no |
| With switch: | no |
| Material: | metal/plastic |
| Luminaire with limited surface temperature D-mark according to EN 60598-2-24: | no |
| Covering of the luminaire with thermal insulation material possible: | no |
| Suitable for Emergency light: | no |
| Voltage type: | AC |
| Light color: | white |
| Color rendering index CRI: | 80-89 |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming Potentiometer (integrated in device): | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with Push button: | no |
| Without dimming function: | yes |
| With motion detector: | no |
| Height/depth: | 30 mm |
| Number of poles: | 3 |
| Connection type: | Screw terminal |
| Replaceable operating device: | no |
| Constant luminous flux control: | no |
| Integrated emergency power supply: | no |
| Adjustable color temperature: | no |
| Luminous flux adjustable: | no |
| Beam angle adjustable: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | no |
Features
With switch
No
HAB
Rigid white 35W 4000K 3500lm L: 1197mm
Manufacturer
HAN
L11973540W
GTIN
4037293003759
Covering the luminaire with thermal insulation material possible
No
Connection type
Screw terminal
Beam angle adjustable
No
Replaceable operating device
No
Operating device
LED control gear current controlled
Width
80 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Electrical connection with plug-in system
No
Color temperature
4000K
Color temperature adjustable
No
Color rendering index CRI
80-89
Suitable for emergency lighting
No
Housing color
White
Height/Depth
30 mm
IFTTT support available
No
Compatible with Amazon Alexa
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Constant luminous flux control
No
Luminaire with limited surface temperature D-mark according to EN 60598-2-24
No
Lamps
LED not replaceable
Light color
White
Luminous flux
3841lm
Luminous flux adjustable
No
Length
1197 mm
Max. system performance
35W
With operating device
Yes
With motion detector
No
With light source
Yes
Nominal voltage
220 to 240 V
Emergency power supply integrated
No
Without dimming function
Yes
Number of poles
3
IP protection)
IP20
Protection class
I
Voltage type
AC
Material
Metal, plastic
