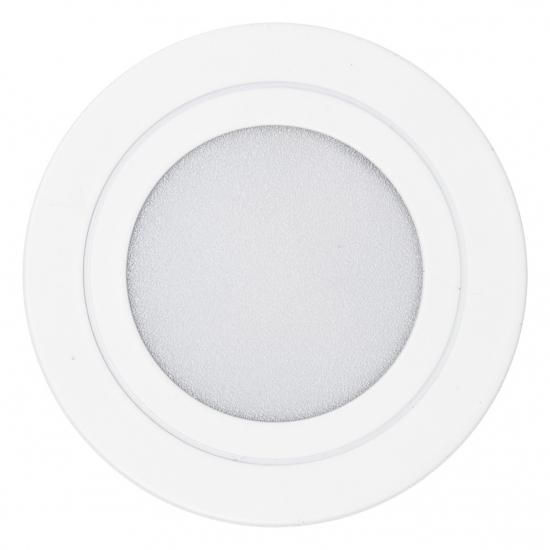

Recessed ceiling light for a wide range of indoor applications. Both effect lighting, accent lighting and much more can be implemented with this light. Thanks to the built-in LED chip, there are no additional costs for light sources. Several lights can be operated via one control device, which means that different light groups can be switched within a room. Since the light is operated via 350mA, the lights must be connected in series. The light has a 0.15m long connection cable.
| Property | Value |
| System power: | 3 W |
| Housing color: | white |
| Housing material: | aluminum |
| Protection class (IP): | IP20 |
| Outer diameter: | 70 mm |
| Light source: | LED not replaceable |
| Protection class: | III |
| With light source: | yes |
| Installation height/depth: | 18 mm |
| With Operating device: | no |
| Suitable for recessed mounting: | yes |
| Height/depth: | 20 mm |
| With motion detector: | no |
| Suitable for wall mounting: | no |
| Color temperature: | 3000 K |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | LED operating device, current-controlled |
| Beam angle: | extreme wide beam>80° |
| Luminaire with limited surface temperature D-mark according to EN 60598-2-24: | no |
| Reflector: | without |
| Luminous flux: | 210 lm |
| Cover material: | opal plastic |
| Covering of the luminaire with thermal insulation material possible: | no |
| Light color: | white |
| Suitable for track mounting: | no |
| Adjustability: | not adjustable |
| Suitable for clamp mounting: | no |
| Suitable for Pendulum suspension: | no |
| Suitable for platform/floor mounting: | no |
| Suitable for truss mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | no |
| Suitable for cable system: | no |
| Surface protection: | powder-coated |
| Brushed surface: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming Potentiometer (device-integrated): | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
| Light emission: | direct |
| Rated ambient temperature according to IEC 62722-2-1: | -10 to 50 °C |
| Luminous intensity: | 78 cd |
| Type of wiring: | suitable for through-wiring |
| Number of poles: | 2 |
| Connection type: | other |
| Luminaire luminous efficacy: | 70 lm/W |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Replaceable control gear: | no |
| Dimming DALI-2: | no |
| Constant luminous flux control: | no |
| Color temperature adjustable: | no |
| Beam angle adjustable: | no |
| Installation diameter: | 55 mm |
| Emergency power supply integrated: | no |
| IFTTT support available: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
Features
HAB
Rigid round 3W 350mA IP20 warm white
Manufacturer
HAN
L20300102
GTIN
4037293012911
Covering the luminaire with thermal insulation material possible
No
Connection type
Other
Type of wiring
Suitable for through wiring
Beam angle adjustable
No
Replaceable operating device
No
Outer diameter
70 mm
Rated ambient temperature according to IEC 62722-2-1
-10 to 50 °C
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation diameter
55 mm
Installation height/depth
18 mm
Color temperature
3000K
Color temperature adjustable
No
Color rendering index CRI
80-89
Suitable for surface mounting
No
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for clamp mounting
No
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
No
Suitable for rope system
No
Suitable for busbar mounting
No
Suitable for truss mounting
No
Suitable for wall mounting
No
Housing color
White
Height/Depth
20 mm
IFTTT support available
No
Compatible with Amazon Alexa
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Constant luminous flux control
No
Luminaire with limited surface temperature D-mark according to EN 60598-2-24
No
Luminaire luminous efficacy
70lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
210lm
Light intensity
78 cd
Light distribution
Symmetrical
With operating device
No
With motion detector
No
With light source
Yes
With light sensor
No
Emergency power supply integrated
No
Brushed surface
No
Surface protection
Powder coated
Without dimming function
No
Number of poles
2
Reflector
Without
IP protection)
IP20
Protection class
III
System performance
3W
Adjustability
Not adjustable
Cover material
Plastic opal
Housing material
Aluminum
