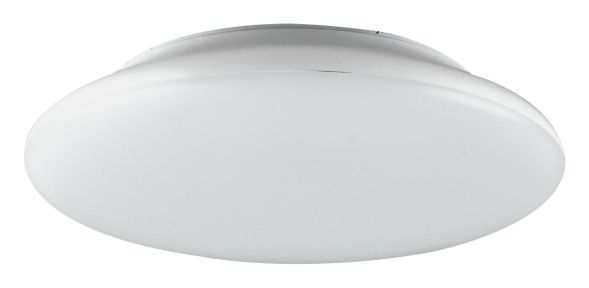

LED surface-mounted light for various applications, such as comprehensive but also effective lighting in hallways, living rooms, offices and much more. Due to the protection class and UV resistance, the light can also be used in protected outdoor areas without any problems. One of three possible color temperatures can be set using the switch on the back. The possible color temperatures and resulting lumens are: 3000K (1130lm), 4000K (1200lm) and 5700K (1170lm). The large-area light emission always creates very homogeneous illumination.
| Property | Value |
| System power: | 12 W |
| Luminous flux: | 1200 lm |
| Height/depth: | 55 mm |
| Protection rating (IP): | IP54 |
| Protection class: | II |
| Luminaire with limited surface temperature D-mark according to EN 60598-2-24: | no |
| Nominal voltage: | 200 to 240 V |
| Housing color: | white |
| Material of Housing: | Plastic |
| Color temperature: | 3000 to 5700 K |
| Impact resistance: | IK06 |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Outer diameter: | 250 mm |
| Voltage type: | AC |
| With motion detector: | no |
| Beam angle: | extremely wide beam>80° |
| With light source: | yes |
| Light source: | LED not replaceable |
| Temperature: | -20 to 45 °C |
| Connection type: | Screw terminal |
| With operating device: | yes |
| Cover material: | Plastic opal |
| Without dimming function: | no |
| Light emission: | direct |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Operating device: | LED operating device current-controlled |
| Suitable for Recessed installation: | no |
| Light colour: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for light strip configuration: | no |
| Suitable for pendant suspension: | no |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Covering of the luminaire with thermal insulation material possible: | no |
| DMX dimming: | no |
| DSI dimming: | no |
| With Air slots: | no |
| Dimming LineSwitch: | no |
| Dimming Potentiometer (device-integrated): | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | yes |
| Dimming Phase control: | yes |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Number of poles: | 2 |
| Nominal current: | 150 mA |
| Replaceable operating device: | no |
| Dimming DALI-2: | no |
| Luminous flux maintenance at average Service life 50,000 h at 25 °C ambient temperature: | 20 % |
| Integrated emergency power supply: | no |
| Constant luminous flux control: | no |
| Adjustable color temperature: | levels |
| Adjustable beam angle: | no |
| Operation via Bluetooth: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | no |
Features
HAB
Catino 3000K 4000K 5700K 1130lm 1200lm
Manufacturer
HAN
L25120125
GTIN
4037293023900
Covering the luminaire with thermal insulation material possible
No
Connection type
Screw terminal
Beam angle adjustable
No
Replaceable operating device
No
Outer diameter
250 mm
Operation via Bluetooth
No
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
Yes
Dimming phase control
Yes
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color temperature
3000 to 5700 K
Color temperature adjustable
Stages
Color rendering index CRI
80-89
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
No
Suitable for light strip configuration
No
Suitable for emergency lighting
No
Suitable for pendulum suspension
No
Housing color
White
Height/Depth
55 mm
IFTTT support available
No
Compatible with Amazon Alexa
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Constant luminous flux control
No
Luminaire with limited surface temperature D-mark according to EN 60598-2-24
No
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
1200lm
Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.
20 %
Light distribution
Symmetrical
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
With air slots
No
Nominal voltage
200 to 240 V
Rated current
150mA
Emergency power supply integrated
No
Without dimming function
No
Number of poles
2
Impact resistance
IK06
IP protection)
IP54
Protection class
II
Voltage type
AC
System performance
12W
Temperature
-20 to 45 °C
Cover material
Plastic opal
Housing material
Plastic
