Description

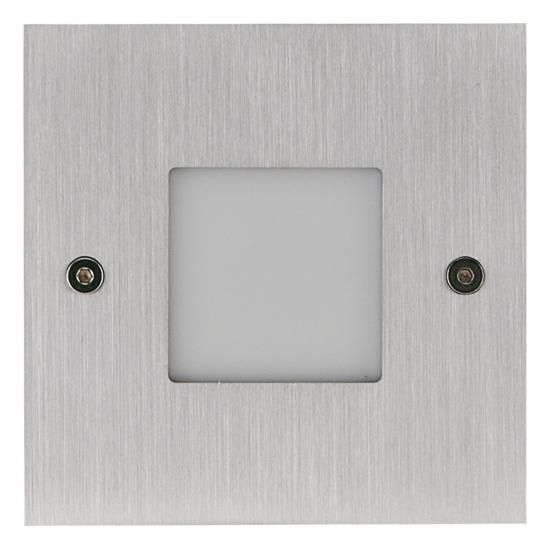

The LED recessed light is designed so that it can either be attached directly to the wall with two screws or alternatively mounted in switch boxes. Due to its design and performance, the light is perfect as an orientation light. Since the light is operated via 350mA, the lights must be connected in series.
| Property | Value |
| System power: | 1 W |
| Luminous flux: | 60 lm |
| Length: | 80 mm |
| Width: | 80 mm |
| Height/depth: | 32 mm |
| Protection rating (IP): | IP20 |
| Protection class: | III |
| Luminaire with limited surface temperature D-mark according to EN 60598-2-24: | no |
| Housing color: | aluminium |
| Housing material: | aluminium |
| Color temperature: | 3000 K |
| Suitable for ceiling mounting: | no |
| Voltage type: | AC |
| With motion detector: | no |
| Beam angle: | extremely wide beam>80° |
| With light source: | yes |
| Light source: | LED not replaceable |
| Connection type: | other |
| With control gear: | no |
| Cover material: | plastic opal |
| Installation height/depth: | 30 mm |
| Without dimming function: | no |
| Light emission: | direct |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Control gear: | LED control gear current-controlled |
| Suitable for Recessed installation: | yes |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for strip light configuration: | no |
| Suitable for pendant suspension: | no |
| Suitable for surface mounting: | no |
| Suitable for emergency lighting: | no |
| Installation diameter: | 47 mm |
| Covering of the luminaire with thermal insulation material possible: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| With air slots: | no |
| Dimming LineSwitch: | no |
| Dimming Potentiometer (device-integrated): | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming Mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Luminous efficacy: | 60 lm/W |
| Number of poles: | 2 |
| Nominal current: | 350 mA |
| Replaceable operating device: | no |
| DALI-2 dimming: | no |
| Integrated emergency power supply: | no |
| Constant luminous flux control: | no |
| Adjustable color temperature: | no |
| Adjustable beam angle: | no |
| Operation via Bluetooth: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | no |
Features
HAB
Aluminum 350mA 1W 3000K 60lm
Manufacturer
HAN
L41N624
GTIN
4037293362870
Covering the luminaire with thermal insulation material possible
No
Connection type
Other
Beam angle adjustable
No
Replaceable operating device
No
Operation via Bluetooth
No
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
No
Width
80 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation diameter
47 mm
Installation height/depth
30 mm
Color temperature
3000K
Color temperature adjustable
No
Suitable for surface mounting
No
Suitable for ceiling mounting
No
Suitable for flush mounting
Yes
Suitable for light strip configuration
No
Suitable for emergency lighting
No
Suitable for pendulum suspension
No
Housing color
Aluminum
Height/Depth
32 mm
IFTTT support available
No
Compatible with Amazon Alexa
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Constant luminous flux control
No
Luminaire with limited surface temperature D-mark according to EN 60598-2-24
No
Luminaire luminous efficacy
60lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
60lm
Light distribution
Symmetrical
Length
80 mm
With operating device
No
With motion detector
No
With light source
Yes
With light sensor
No
With air slots
No
Rated current
350mA
Emergency power supply integrated
No
Without dimming function
No
Number of poles
2
IP protection)
IP20
Protection class
III
Voltage type
AC
System performance
1W
Cover material
Plastic opal
Housing material
Aluminum
