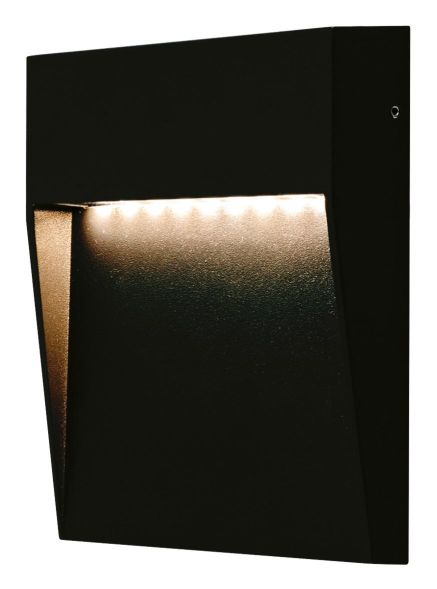

The LED wall light is made of die-cast aluminum. Thanks to the protection class, it can be used both indoors and outdoors. The modern shape makes the light perfect for all applications that require special lighting effects. This means that not only can house facades be skilfully set in scene, but also staircases or staircases can be perfectly illuminated, and of course much more.
| Property | Value |
| System power: | 3 W |
| Luminous flux: | 298 lm |
| Length: | 160 mm |
| Width: | 160 mm |
| Height/depth: | 30 mm |
| Protection rating (IP): | IP54 |
| Protection class: | I |
| Luminaire with limited surface temperature D-mark according to EN 60598-2-24: | no |
| Nominal voltage: | 100 to 240 V |
| Housing color: | anthracite |
| Housing material: | aluminum |
| Color temperature: | 3000 K |
| Impact resistance: | IK06 |
| Suitable for ceiling mounting: | no |
| Voltage type: | AC |
| With motion detector: | no |
| Beam angle: | wide beam 41-80° |
| With light source: | yes |
| Light source: | LED not replaceable |
| Connection type: | screw terminal |
| With operating device: | yes |
| Cover material: | transparent plastic |
| Without dimming function: | yes |
| Light emission: | direct |
| With light sensor: | no |
| Operating device: | LED operating device current-controlled |
| Suitable for recessed mounting: | no |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for light strip configuration: | no |
| Suitable for pendant suspension: | no |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Covering of the luminaire with thermal insulation material possible: | no |
| DMX dimming: | no |
| DSI dimming: | no |
| With air slots: | no |
| LineSwitch dimming: | no |
| Potentiometer dimming (device-integrated): | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Luminaire luminous efficacy: | 99 lm/W |
| Number of poles: | 3 |
| Surface protection housing: | powder-coated |
| Nominal current: | 350 mA |
| Replaceable operating device: | no |
| Dimming DALI-2: | no |
| Emergency power supply integrated: | no |
| Constant luminous flux control: | no |
| Color temperature adjustable: | no |
| Beam angle adjustable: | no |
| Operation via Bluetooth: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | no |
Features
HAB
Anthracite die-cast aluminum 298lm 3000K IP54
Manufacturer
HAN
L54431502
GTIN
4037293017015
Covering the luminaire with thermal insulation material possible
No
Connection type
Screw terminal
Beam angle
Wide beam 41-80°
Beam angle adjustable
No
Replaceable operating device
No
Operation via Bluetooth
No
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
No
Width
160 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color temperature
3000K
Color temperature adjustable
No
Suitable for surface mounting
Yes
Suitable for ceiling mounting
No
Suitable for flush mounting
No
Suitable for light strip configuration
No
Suitable for emergency lighting
No
Suitable for pendulum suspension
No
Housing color
Anthracite
Height/Depth
30 mm
IFTTT support available
No
Compatible with Amazon Alexa
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Constant luminous flux control
No
Luminaire with limited surface temperature D-mark according to EN 60598-2-24
No
Luminaire luminous efficacy
99lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
298lm
Length
160 mm
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
With air slots
No
Nominal voltage
100 to 240 V
Rated current
350mA
Emergency power supply integrated
No
Surface protection housing
Powder coated
Without dimming function
Yes
Number of poles
3
Impact resistance
IK06
IP protection)
IP54
Protection class
I
Voltage type
AC
System performance
3W
Cover material
Plastic transparent
Housing material
Aluminum
