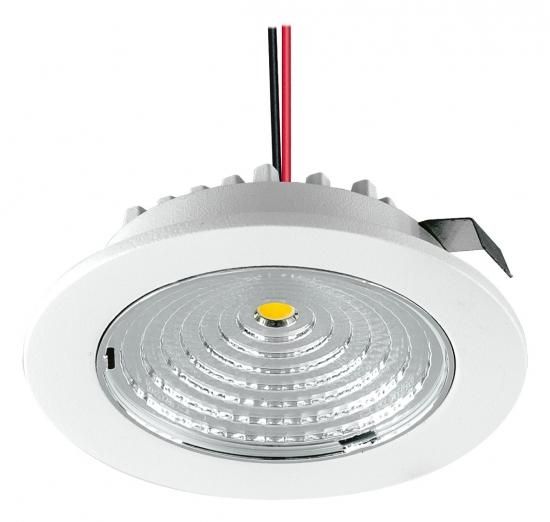

Recessed ceiling light for a wide range of indoor applications. Both effect lighting, accent lighting and much more can be implemented with this light. Thanks to the built-in LED chip, there are no additional costs for light sources. Several lights can be operated via one control device, which means that different light groups can be switched within a room. Since the light is operated via 350mA, the lights must be connected in series. The light has a 0.25m long connection cable.
| Property | Value |
| System power: | 3 W |
| Housing color: | white |
| Housing material: | aluminum |
| Protection class (IP): | IP20 |
| Outer diameter: | 68 mm |
| Light source: | LED not replaceable |
| Protection class: | III |
| With light source: | yes |
| Installation height/depth: | 16 mm |
| With Operating device: | no |
| Suitable for recessed mounting: | yes |
| Height/depth: | 18 mm |
| With motion detector: | no |
| Suitable for wall mounting: | no |
| Color temperature: | 3000 K |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | LED operating device, current-controlled |
| Beam angle: | extreme wide beam>80° |
| Luminaire with limited surface temperature D-mark according to EN 60598-2-24: | no |
| Reflector: | high-gloss |
| Luminous flux: | 275 lm |
| Cover material: | transparent plastic |
| Covering of the luminaire with thermal insulation material possible: | no |
| Light color: | white |
| Suitable for track mounting: | no |
| Adjustability: | not adjustable |
| Suitable for Clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for platform/floor mounting: | no |
| Suitable for truss mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | no |
| Suitable for cable system: | no |
| Surface protection: | powder-coated |
| Brushed surface: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming Potentiometer (device-integrated): | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming Phase control: | no |
| Programmable dimming: | no |
| RF dimming: | no |
| Sine Wave Reduction dimming: | no |
| Touch and Dim dimming: | no |
| Zigbee dimming: | no |
| Push-button dimming: | no |
| Without dimming function: | no |
| Light distributor: | Reflector |
| Light emission: | direct |
| Rated ambient temperature according to IEC 62722-2-1: | -10 to 50 °C |
| Luminous intensity: | 187 cd |
| Number of poles: | 2 |
| Connection type: | other |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Replaceable operating device: | no |
| Dimming DALI-2: | no |
| Constant luminous flux control: | no |
| Adjustable color temperature: | no |
| Beam angle adjustable: | no |
| Installation diameter: | 55 mm |
| Emergency power supply integrated: | no |
| IFTTT support available: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
Features
HAB
IP20 350mA 3W 3000K 275lm round white
Manufacturer
HAN
L55030102
GTIN
4037293021470
Covering the luminaire with thermal insulation material possible
No
Connection type
Other
Beam angle adjustable
No
Replaceable operating device
No
Outer diameter
68 mm
Rated ambient temperature according to IEC 62722-2-1
-10 to 50 °C
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation diameter
55 mm
Installation height/depth
16 mm
Color temperature
3000K
Color temperature adjustable
No
Color rendering index CRI
80-89
Suitable for surface mounting
No
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for clamp mounting
No
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
No
Suitable for rope system
No
Suitable for busbar mounting
No
Suitable for truss mounting
No
Suitable for wall mounting
No
Housing color
White
Height/Depth
18 mm
IFTTT support available
No
Compatible with Amazon Alexa
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Constant luminous flux control
No
Luminaire with limited surface temperature D-mark according to EN 60598-2-24
No
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
275lm
Light intensity
187 cd
Light distributor
Reflector
Light distribution
Symmetrical
With operating device
No
With motion detector
No
With light source
Yes
With light sensor
No
Emergency power supply integrated
No
Brushed surface
No
Surface protection
Powder coated
Without dimming function
No
Number of poles
2
Reflector
High gloss
IP protection)
IP20
Protection class
III
System performance
3W
Adjustability
Not adjustable
Cover material
Plastic transparent
Housing material
Aluminum
