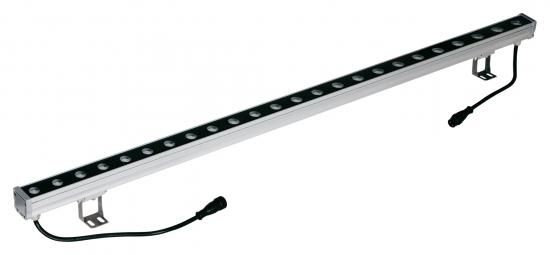

The LED wallwasher can be used not only for numerous outdoor applications, but also indoors. It is mounted using the brackets included in the delivery. These allow a swivel range of 225°. The height indicated is including the bracket, measured when not swiveled. To avoid condensation, the wallwasher has a self-venting vent valve. On both sides of the wallwasher there is a 20cm long connection cable with a plug or socket, which means that several wallwashers (max. 5) can be connected to one another and thus operated using just one operating device. The supply cable for connecting to the power supply is available separately, in lengths of 10m (P65ASL1000UNI) or 3m (P65ASL300UNI). A 1m long connection cable is also available separately (P65VBL100UNI). ta: -20°C - 45°C.
| Property | Value |
| System power: | 24 W |
| Housing color: | aluminum |
| Housing material: | aluminum |
| Protection class (IP): | IP65 |
| Light source: | LED not replaceable |
| Protection class: | III |
| With light source: | yes |
| With operating device: | no |
| Suitable for recessed mounting: | no |
| Length: | 1010 mm |
| Width: | 38 mm |
| Height/Depth: | 83 mm |
| With motion detector: | no |
| Suitable for wall mounting: | yes |
| Color temperature: | 3000 K |
| Nominal voltage: | 24 V |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | LED operating device voltage controlled |
| Beam angle: | medium beam 21-40° |
| Impact resistance: | IK05 |
| Luminaire with limited surface temperature D-mark according to EN 60598-2-24: | no |
| Luminous flux: | 1872 lm |
| Cover material: | transparent glass |
| Covering of the luminaire with thermal insulation material possible: | no |
| Voltage type: | DC |
| Light color: | white |
| Suitable for Busbar mounting: | no |
| Adjustability: | pivotable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for platform/floor mounting: | yes |
| Suitable for traverse mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | yes |
| Suitable for cable system: | no |
| Surface protection: | other |
| surface brushed: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming Potentiometer (device-integrated): | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming Mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without Dimming function: | no |
| Light distributor: | Focus lens |
| Light emission: | direct |
| Luminous intensity: | 5469 cd |
| Type of wiring: | with through-wiring |
| Number of poles: | 2 |
| Conductor cross-section: | 0.75 mm² |
| Connection type: | other |
| Luminous efficacy: | 78 lm/W |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Replaceable Operating device: | no |
| Dimming DALI-2: | no |
| Luminous flux maintenance at average Service life 50,000 h at 25 °C ambient temperature: | 30 % |
| Constant luminous flux control: | no |
| Color temperature adjustable: | no |
| Beam angle adjustable: | no |
| Integrated emergency power supply: | no |
| IFTTT support available: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
Features
HAB
Silver IP65 24W 24V/DC 3000K 1170lm
Manufacturer
HAN
P65242402
GTIN
4037293004435
Covering the luminaire with thermal insulation material possible
No
Connection type
Other
Type of wiring
With through wiring
Beam angle
Medium beam 21-40°
Beam angle adjustable
No
Replaceable operating device
No
Operating device
LED control gear voltage controlled
Suitable for computer workstations according to EN 12464-1
No
Width
38 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color temperature
3000K
Color temperature adjustable
No
Color rendering index CRI
80-89
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
No
Suitable for clamp mounting
No
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
Yes
Suitable for rope system
No
Suitable for busbar mounting
No
Suitable for truss mounting
No
Suitable for wall mounting
Yes
Housing color
Aluminum
Height/Depth
83 mm
IFTTT support available
No
Compatible with Amazon Alexa
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Constant luminous flux control
No
Conductor cross-section
0.75 mm²
Luminaire with limited surface temperature D-mark according to EN 60598-2-24
No
Luminaire luminous efficacy
78lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
1872 lm
Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.
30 %
Light intensity
5469 cd
Light distributor
Focus lens
Light distribution
Symmetrical
Length
1010 mm
With operating device
No
With motion detector
No
With light source
Yes
With light sensor
No
Nominal voltage
24V
Emergency power supply integrated
No
Brushed surface
No
Surface protection
Other
Without dimming function
No
Number of poles
2
Impact resistance
IK05
IP protection)
IP65
Protection class
III
Voltage type
DC
System performance
24W
Adjustability
Swiveling
Cover material
Glass transparent
Housing material
Aluminum
