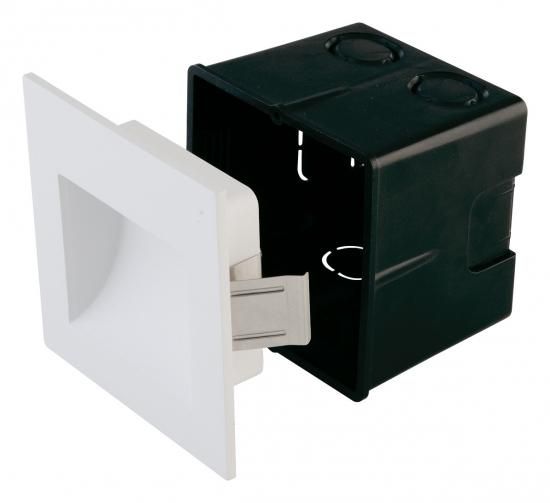

LED recessed wall light for a wide range of indoor and outdoor applications. To avoid glare, the light is emitted indirectly via the white reflector. The light can also be installed using the plastic installation sleeve provided; the required hole cutout in this case is 82x80mm (WxH) and the installation depth is 65mm. Using the installation sleeve makes installation in solid masonry much easier, for example. Since the light is operated via 350mA, the lights must be connected in series.
| Property | Value |
| System power: | 2 W |
| Luminous flux: | 120 lm |
| Length: | 90 mm |
| Width: | 90 mm |
| Height/depth: | 30 mm |
| Protection rating (IP): | IP65 |
| Protection class: | III |
| Luminaire with limited surface temperature D-mark according to EN 60598-2-24: | no |
| Housing color: | white |
| Material of the housing: | aluminium |
| Color temperature: | 3000 K |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | no |
| With motion detector: | no |
| Beam angle: | extremely wide beam>80° |
| With light source: | yes |
| Light source: | LED not replaceable |
| Temperature: | -20 to 50 °C |
| Connection type: | other |
| With Operating device: | no |
| Cover material: | opal plastic |
| Installation height/depth: | 27 mm |
| Without dimming function: | no |
| Installation width: | 70 mm |
| Light emission: | indirect |
| With light sensor: | no |
| Operating device: | LED operating device, current-controlled |
| Suitable for recessed mounting: | yes |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for strip light configuration: | no |
| Suitable for pendant suspension: | no |
| Suitable for surface mounting: | no |
| Suitable for emergency lighting: | no |
| Installation length: | 61 mm |
| Covering of the luminaire with thermal insulation material possible: | no |
| DMX dimming: | no |
| DSI dimming: | no |
| With Air slots: | no |
| Dimming LineSwitch: | no |
| Dimming Potentiometer (device-integrated): | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming Mains voltage modulation: | no |
| Dimming Trailing edge: | no |
| Dimming Phase control: | no |
| Programmable dimming: | no |
| RF dimming: | no |
| Sine Wave Reduction dimming: | no |
| Touch and Dim dimming: | no |
| Zigbee dimming: | no |
| Push-button dimming: | no |
| Luminous efficacy: | 60 lm/W |
| Number of poles: | 2 |
| Surface protection Housing: | powder-coated |
| Nominal current: | 350 mA |
| Replaceable operating device: | no |
| DALI-2 dimming: | no |
| Integrated emergency power supply: | no |
| Constant luminous flux control: | no |
| Adjustable color temperature: | no |
| Adjustable beam angle: | no |
| Operation via Bluetooth: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | no |
Features
HAB
Quad. white IP65 2W 3000K 120lm
Manufacturer
HAN
P654030102
GTIN
4037293004244
Covering the luminaire with thermal insulation material possible
No
Connection type
Other
Beam angle adjustable
No
Replaceable operating device
No
Operation via Bluetooth
No
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
No
Width
90 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation width
70 mm
Installation height/depth
27 mm
Installation length
61 mm
Color temperature
3000K
Color temperature adjustable
No
Color rendering index CRI
80-89
Suitable for surface mounting
No
Suitable for ceiling mounting
No
Suitable for flush mounting
Yes
Suitable for light strip configuration
No
Suitable for emergency lighting
No
Suitable for pendulum suspension
No
Housing color
White
Height/Depth
30 mm
IFTTT support available
No
Compatible with Amazon Alexa
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Constant luminous flux control
No
Luminaire with limited surface temperature D-mark according to EN 60598-2-24
No
Luminaire luminous efficacy
60lm/W
Lamps
LED not replaceable
Light emission
Indirect
Light color
White
Luminous flux
120lm
Length
90 mm
With operating device
No
With motion detector
No
With light source
Yes
With light sensor
No
With air slots
No
Rated current
350mA
Emergency power supply integrated
No
Surface protection housing
Powder coated
Without dimming function
No
Number of poles
2
IP protection)
IP65
Protection class
III
System performance
2W
Temperature
-20 to 50 °C
Cover material
Plastic opal
Housing material
Aluminum
