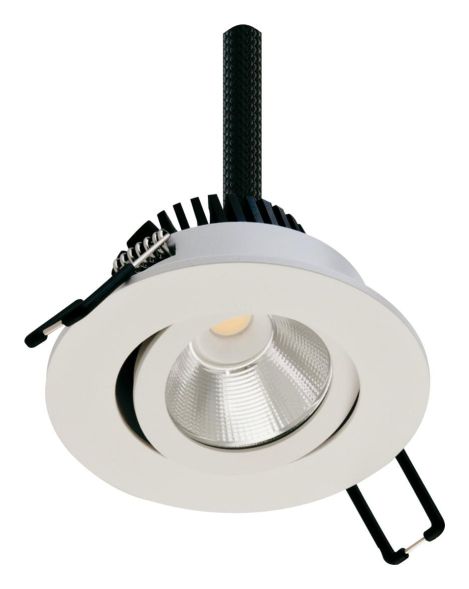

The COB-LED recessed ceiling light can be used for a wide range of indoor applications, such as effect lighting, room lighting, accent lighting and much more. Since it also has the MM marking, it can even be used in furniture construction. Additional costs for lamps and operating devices are not required for this light, as the power is supplied by a permanently installed high-voltage LED chip. The swivel angle is 20°. The connecting cable including the connection box is 30cm long, the dimensions of the connection box are: LxWxH: 75 x 42 x 33mm.
| Property | Value |
| System power: | 6 W |
| Housing color: | white |
| Housing material: | aluminum |
| Protection class (IP): | IP20 |
| Outer diameter: | 83 mm |
| Light source: | LED not replaceable |
| Protection class: | I |
| With light source: | yes |
| Installation height/depth: | 43 mm |
| With Operating device: | no |
| Suitable for recessed mounting: | yes |
| Height/depth: | 45 mm |
| With motion detector: | no |
| Suitable for wall mounting: | no |
| Color temperature: | 3000 K |
| Nominal voltage: | 230 V |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | not required |
| Beam angle: | medium beam 21-40° |
| Luminaire with limited surface temperature D-mark according to EN 60598-2-24: | no |
| Reflector: | high gloss |
| Luminous flux: | 528 lm |
| Cover material: | transparent glass |
| Covering of the luminaire with thermal insulation material possible: | no |
| Voltage type: | AC |
| Light color: | white |
| Suitable for Busbar mounting: | no |
| Adjustability: | pivotable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for platform/floor mounting: | no |
| Suitable for traverse mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | no |
| Suitable for cable system: | no |
| Surface protection: | powder-coated |
| Surface brushed: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming Potentiometer (device-integrated): | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming Mains voltage modulation: | no |
| Dimming trailing edge: | yes |
| Dimming leading edge: | yes |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without Dimming function: | no |
| Light distributor: | reflector |
| Light emission: | direct |
| Luminous intensity: | 1542 cd |
| Number of poles: | 3 |
| Connection type: | other |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Replaceable operating device: | no |
| Dimming DALI-2: | no |
| Constant luminous flux control: | no |
| Color temperature adjustable: | no |
| Beam angle adjustable: | no |
| Installation diameter: | 68 mm |
| Emergency power supply integrated: | no |
| IFTTT support available: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
Features
HAB
PR black white 3000K 6W 230V
Manufacturer
HAN
PCH20060102
GTIN
4037293005586
Covering the luminaire with thermal insulation material possible
No
Connection type
Other
Beam angle
Medium beam 21-40°
Beam angle adjustable
No
Replaceable operating device
No
Outer diameter
83 mm
Operating device
Not required
Suitable for computer workstations according to EN 12464-1
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
Yes
Dimming phase control
Yes
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation diameter
68 mm
Installation height/depth
43 mm
Color temperature
3000K
Color temperature adjustable
No
Color rendering index CRI
80-89
Suitable for surface mounting
No
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for clamp mounting
No
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
No
Suitable for rope system
No
Suitable for busbar mounting
No
Suitable for truss mounting
No
Suitable for wall mounting
No
Housing color
White
Height/Depth
45 mm
IFTTT support available
No
Compatible with Amazon Alexa
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Constant luminous flux control
No
Luminaire with limited surface temperature D-mark according to EN 60598-2-24
No
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
528lm
Light intensity
1542 cd
Light distributor
Reflector
Light distribution
Symmetrical
With operating device
No
With motion detector
No
With light source
Yes
With light sensor
No
Nominal voltage
230V
Emergency power supply integrated
No
Brushed surface
No
Surface protection
Powder coated
Without dimming function
No
Number of poles
3
Reflector
High gloss
IP protection)
IP20
Protection class
I
Voltage type
AC
System performance
6W
Adjustability
Swiveling
Cover material
Glass transparent
Housing material
Aluminum
