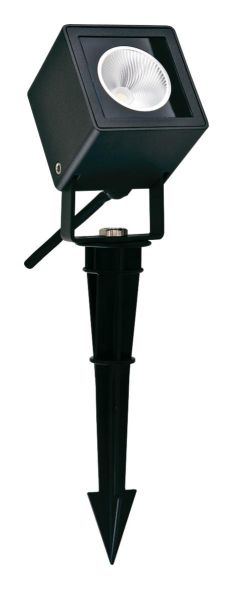

The light can be mounted either directly on the surface using the bracket or optionally in soft ground using the supplied ground spike. The spotlight has a 1.8m long connection cable with connection box. The light can be swivelled +5°/-90°. The ground spike is 215mm long and the head is 75mm deep.
| Property | Value |
| System power: | 9 W |
| Housing color: | anthracite |
| Housing material: | aluminum |
| Protection class (IP): | IP65 |
| Light source: | LED not replaceable |
| Protection class: | I |
| With light source: | yes |
| With operating device: | yes |
| Suitable for recessed mounting: | no |
| Length: | 81 mm |
| Width: | 81 mm |
| Height/Depth: | 117 mm |
| With motion detector: | no |
| Suitable for wall mounting: | yes |
| Color temperature: | 3000 K |
| Nominal voltage: | 200 to 240 V |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | LED operating device current-controlled |
| Beam angle: | medium beam 21-40° |
| Luminaire with limited surface temperature D-mark according to EN 60598-2-24: | no |
| Reflector: | high-gloss |
| Luminous flux: | 512 lm |
| Cover material: | transparent glass |
| Covering of the luminaire with thermal insulation material possible: | no |
| Voltage type: | AC |
| Light color: | white |
| Suitable for Busbar mounting: | no |
| Adjustability: | rotatable and pivotable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for platform/floor mounting: | yes |
| Suitable for traverse mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | yes |
| Suitable for cable system: | no |
| Surface protection: | powder-coated |
| Surface brushed: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming Potentiometer (device-integrated): | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming Mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without Dimming function: | yes |
| Light distributor: | reflector |
| Light emission: | direct |
| Number of poles: | 3 |
| Conductor cross-section: | 0.75 mm² |
| Connection type: | screw terminal |
| Luminous efficacy: | 56 lm/W |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Replaceable operating device: | no |
| Dimming DALI-2: | no |
| Constant luminous flux control: | no |
| Color temperature adjustable: | no |
| Luminous flux adjustable: | no |
| Beam angle adjustable: | no |
| Integrated emergency power supply: | no |
| IFTTT support available: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
Features
HAB
1.8m connection box IP65 9W 3000K 512lm
Manufacturer
HAN
PLCQ65091502
GTIN
4037293014687
Covering the luminaire with thermal insulation material possible
No
Connection type
Screw terminal
Beam angle
Medium beam 21-40°
Beam angle adjustable
No
Replaceable operating device
No
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
No
Width
81 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color temperature
3000K
Color temperature adjustable
No
Color rendering index CRI
80-89
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
No
Suitable for clamp mounting
No
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
Yes
Suitable for rope system
No
Suitable for busbar mounting
No
Suitable for truss mounting
No
Suitable for wall mounting
Yes
Housing color
Anthracite
Height/Depth
117 mm
IFTTT support available
No
Compatible with Amazon Alexa
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Constant luminous flux control
No
Conductor cross-section
0.75 mm²
Luminaire with limited surface temperature D-mark according to EN 60598-2-24
No
Luminaire luminous efficacy
56lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
512lm
Luminous flux adjustable
No
Light distributor
Reflector
Light distribution
Symmetrical
Length
81 mm
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
Nominal voltage
200 to 240 V
Emergency power supply integrated
No
Brushed surface
No
Surface protection
Powder coated
Without dimming function
Yes
Number of poles
3
Reflector
High gloss
IP protection)
IP65
Protection class
I
Voltage type
AC
System performance
9W
Adjustability
Rotatable and pivotable
Cover material
Glass transparent
Housing material
Aluminum
