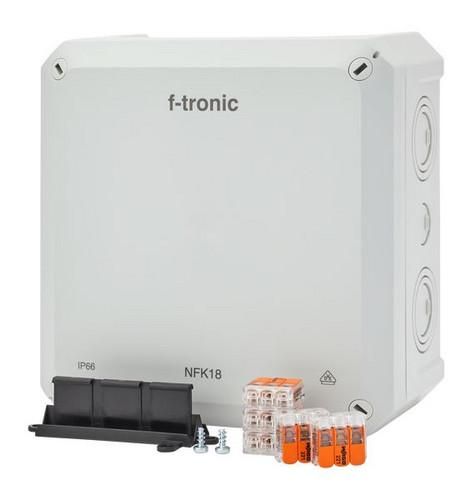

NEPTUN Compact - Small format. Great resistance.. Robust housing in a modern design, screws with mounting position, various break-out entries M20-M40, protection class IP66 through all-round seal, individual fastening options for perfect alignment, membrane entry for NFK08, 4 different sizes, use in damp rooms and in protected outdoor areas
Length: 180 mm
Height: 180 mm
Width: 180 mm
Depth: 93 mm
Mounting type: AP
Equipment: 5x 3-wire connection terminal 6mm²1x terminal holder (NCKH6)2x double membrane connector M20 (DMS20)2x double membrane connector M25 (DMS25)3x double membrane connector M32 (DMS32)4x screw cover2x external fastening strap
Max. conductor cross-section: 16 mm²
Introduction M20: 2
Introduction M20/M25: 2
Introduction M25/M32: 5
Introduction M25/M32/M40: 5
Material box: PS
Material cover: PS
Protection class (IP): IP66
Color: gray
