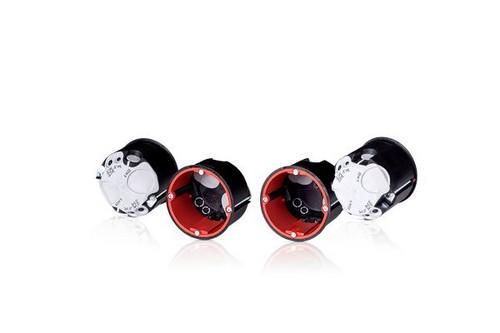

The triathlete among the boxes, fire protection, sound insulation, airtight, DIBt Z-19.21.2283, ETA-18/0628, Opposite installation and subsequent installation possible, Up to 5-fold combination tested, Lightweight walls: Fire resistance class up to EI120 / Fire resistance class EI30 to EI60 without insulation wool, Cross laminated timber wall: Fire resistance class up to EI90
Milling hole diameter: Ø 68 mm
Suitable for panel thickness: 7-40 mm
Cable entry 3x1.5²: 2
Cable entry 5x1.5²/3x2.5²: 2
Max. conductor cross section: 2.5 mm²
Pipe entry: 2x M25
Depth: 50 mm
Accessories: each pack includes 5x E105HF
Mounting type: HW
Box material: PP/TPE-S
Halogen-free: yes
Protection class (IP): IP30
