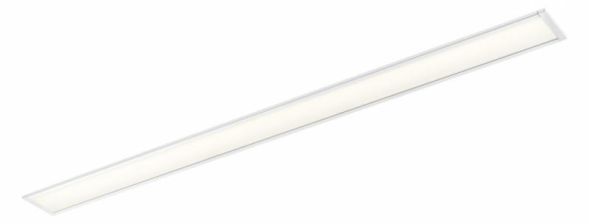

RANA LINEAR R 3KLM NW OPAL
| Property | Value |
| System power: | 31 W |
| Luminous flux: | 3270 lm |
| Number of LM: | 2 |
| Length: | 1150 mm |
| Width: | 90 mm |
| Height/depth: | 91 mm |
| Protection rating (IP): | IP20 |
| Protection class: | I |
| Luminaire with limited surface temperature D-mark according to EN 60598-2-24: | no |
| Nominal voltage: | 220 to 240 V |
| Housing color: | white |
| Color temperature: | 4000 K |
| Impact resistance: | IK07 |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Voltage type: | AC |
| With motion detector: | no |
| Beam angle: | free beam/diffuse |
| With Light source: | yes |
| Light source: | LED replaceable |
| Temperature: | -25 to 40 °C |
| Connection type: | Cable |
| With control gear: | no |
| Cover material: | Opal plastic |
| Light distributor: | Diffuser lens/optics/panel |
| Installation height/depth: | 120 mm |
| Without Dimming function: | yes |
| Light emission: | direct |
| Light distribution: | symmetrical |
| With light sensor: | no |
| Operating device: | EVG |
| Suitable for recessed mounting: | yes |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for light strip configuration: | no |
| Suitable for pendant suspension: | no |
| Suitable for Surface mounting: | no |
| Suitable for emergency lighting: | no |
| Design of the grid: | without |
| Covering of the luminaire with thermal insulation material possible: | yes |
| Dimming DMX: | no |
| Dimming DSI: | no |
| With air slots: | no |
| Dimming LineSwitch: | no |
| Dimming Potentiometer (device-integrated): | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Rated service life: | 60000 h |
| Glow wire test according to IEC 60695-2-11: | 850 °C - 30 s |
| Luminaire luminous efficacy: | 105.48 lm/W |
| Power factor: | 0.95 |
| Type of wiring: | with through wiring |
| Conductor cross-section: | 2.5 mm² |
| Surface protection Housing: | other |
| Nominal current: | 129.2 to 148.3 mA |
| Replaceable operating device: | yes |
| DALI-2 dimming: | no |
| Color consistency (McAdam ellipse): | SDCM3 |
| Max. number of luminaires circuit breaker B16: | 25 |
| Max. Number of lights Circuit breaker C16: | 63 |
| Integrated emergency power supply: | no |
| Constant luminous flux control: | no |
| Total harmonic distortion (THD): | 20 |
| Photobiological safety according to EN 62471: | RG0 |
| Glare limitation (UGR): | 23 |
| Adjustable color temperature: | no |
| Operation via Bluetooth: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | no |
Features
Number of LM
2
Total harmonic distortion (THD)
20
HAB
Rana Linear Opal 31W 3270lm 840
Manufacturer
HAN
0052364
GTIN
5410288523644
Covering the luminaire with thermal insulation material possible
Yes
Connection type
Cable
Type of wiring
With through wiring
Execution of the grid
Without
Beam angle
Free-radiating/diffuse
Replaceable operating device
Yes
Operation via Bluetooth
No
Operating device
Electronic ballast
Suitable for computer workstations according to EN 12464-1
No
Glare limitation (UGR)
23
Width
90 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation height/depth
120 mm
Color consistency (McAdam ellipse)
SDCM3
Color temperature
4000K
Color temperature adjustable
No
Color rendering index CRI
80-89
Suitable for surface mounting
No
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for light strip configuration
No
Suitable for emergency lighting
No
Suitable for pendulum suspension
No
Housing color
White
Glow wire test according to IEC 60695-2-11
850 °C - 30 s
Height/Depth
91 mm
IFTTT support available
No
Compatible with Amazon Alexa
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Constant luminous flux control
No
Power factor
0.95
Conductor cross-section
2.5 mm²
Luminaire with limited surface temperature D-mark according to EN 60598-2-24
No
Luminaire luminous efficacy
105.48lm/W
Lamps
LED replaceable
Light emission
Direct
Light color
White
Luminous flux
3270lm
Light distributor
Diffuser lens/optics/panel
Light distribution
Symmetrical
Length
1150 mm
Max. number of luminaires Circuit breaker B16
25
Max. number of luminaires Circuit breaker C16
63
With operating device
No
With motion detector
No
With light source
Yes
With light sensor
No
With air slots
No
Nominal voltage
220 to 240 V
Rated current
129.2 to 148.3 mA
Emergency power supply integrated
No
Surface protection housing
Other
Without dimming function
Yes
Photobiological safety according to EN 62471
RG0
Impact resistance
IK07
IP protection)
IP20
Protection class
I
Voltage type
AC
System performance
31 W
Temperature
-25 to 40 °C
Cover material
Plastic opal
