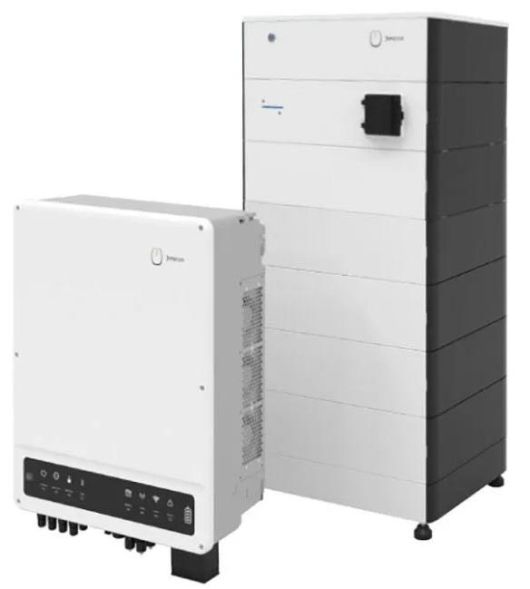

Fenecon FEH114 Home 20 kW with 26.5 kWh home storage system

Home 20 kW with 26.5 kWh home storage system

Inverter: FHI-20-DAH
Max. DC input power: 30kWp
MPP tracker: 2
Max. usable input current per MPPT: 30A
Max. short-circuit current per MPPT: 38A
Inputs per MPPT: 1x MC4 each
Starting voltage: 200V
Min. DC feed-in voltage: 950V
Max. DC input voltage: 1000V
MPPT voltage range: 200 - 850V
Nominal input voltage: 620V
Weight: 48kg
Dimensions: 520 x 220 x 660mm (L x W x H)
Energy management system:
Hardware interfaces:
Inputs: 4x potential-free contacts
Outputs: 3x load switching contacts (10 A per Channel)
Communication of components RS485 - Modbus RTU
Internet connection: LAN
Local: Modbus/TCP-API (reading, optionally writing) REST-API (reading, optionally writing)

Battery:
Nominal capacity: 27.9kWh
Usable capacity: 26.5kWh
Nominal power: 22.4kW
Cell technology: Lithium iron phosphate
Total weight: 337kg
Overall dimensions: (H x L x W) 1692 x 506 x 401mm
