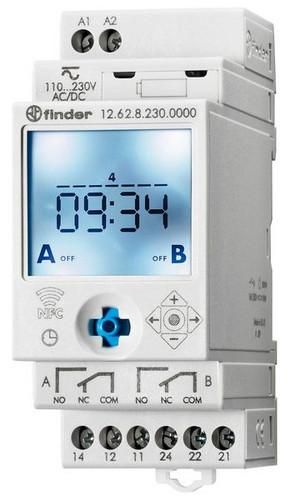

Electronic timer with LCD display for series installation, 2 changeover contacts for 16 A / 250 V AC (AC1), joystick programming or programming via an NFC-enabled smartphone with the Finder Toolbox app (Android and iOS). After installing the Finder app, an existing program can be read out or a new program can be programmed with maximum flexibility. To transfer the data, the timer is touched with the smartphone. Contact material AgSnO2, max. inrush current 120 A for 5 ms, pulse function 1 second to 59 minutes, shortest switching time 1 minute, max. switching capacity at 230 V AC1: 4000 VA. Lamp loads: incandescent and halogen lamps 2000 W, energy saving lamps 400 W, LED (230 V AC) 400 W, low-voltage halogen lamps or LED with electronic ballast 400 W, low-voltage halogen lamps or LED with conventional ballast 800 W, fluorescent lamps with electronic ballast 1000 W, fluorescent lamps with conventional ballast 750 W, safe separation between power supply and contacts
| Property | Value |
| Width in pitch units: | 2 |
| Number of channels: | 2 |
| Protection class (IP): | IP20 |
| Supply voltage: | 230 V |
| Power reserve in years: | 6 |
| Weekly program: | yes |
| Annual program: | no |
| Mounting type: | DIN rail |
| Type of supply voltage: | AC |
| Frequency of supply voltage: | 50 to 60 Hz |
| Accuracy per day: | 1.5 s |
| Text guidance in Display: | yes |
| 24 h program: | yes |
| 60 min program: | no |
| Automatic summer/winter time change: | yes |
| Shortest switching time channel 1: | 1 min |
| Holiday program: | no |
| Pulse program: | yes |
| Cycle program: | no |
| Astro program: | no |
| External button input: | no |
| Random program: | no |
| Operating hours counter: | no |
| Mains synchronous: | no |
| Quartz controlled: | yes |
| Radio controlled: | no |
| Shortest switching time channel 2: | 1 min |
| Contact design: | Changer |
| Manual operation: | no |
| Number of memory locations: | 50 |
| Switching preselection: | no |
| Nominal switching current at 250 V AC: | 16 A |
| Potential-free switching contact: | yes |
| Width: | 35 mm |
| Height: | 88.8 mm |
| Depth: | 60.8 mm |
| External programming: | yes |
| Radio controlled (DCF77): | no |
| GPS: | no |
| With memory card: | no |
