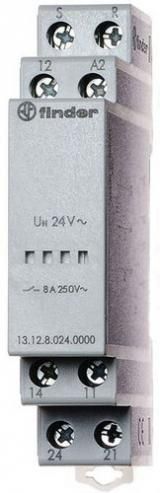

Call acknowledgement relay, 1 normally open contact + 1 changeover contact for 8 A / 250 V AC (AC1), contact material AgCdO, max. switching capacity at 230 V AC: AC1-2,000 VA, AC15-400 VA, lamp loads: incandescent and halogen lamps 800 W, energy saving lamps 150 W, LED (230 V AC) 150 W, LV halogen lamps or LED with electronic ballast 150 W, LV halogen lamps or LED with conventional ballast 300 W, fluorescent lamps with electronic ballast 300 W, fluorescent lamps with conventional ballast 250 W, contact material: AgCdO, 100 % duty cycle, connection voltage: 12 V AC/DC, with a pulse or permanent signal on input S the call for help is set and with a pulse or permanent signal on input R the call for help is acknowledged.
| Property | Value |
| Width in modular spacing: | 1 |
| Rated switching current: | 8 A |
| Control voltage 1: | 12 V |
| Control voltage type 1: | AC/DC |
| Installation depth: | 60.8 mm |
| Function: | electronic group switch |
| Mounting type: | DIN rail |
| Frequency of control voltage 1: | 50 to 60 Hz |
| Type of supply voltage: | AC/DC |
| Supply voltage: | 12 V |
| Max. incandescent lamp load: | 800 W |
| Max. fluorescent lamp load: | 300 VA |
| Max. fluorescent lamp load (duo circuit): | 250 VA |
| Max. Fluorescent lamp load (parallel compensated): | 250 VA |
| Max. switching current (cos phi = 0.6): | 5 A |
| Manual operation possible: | no |
| Number of contacts as normally open: | 1 |
| Number of contacts as changeover: | 1 |
Features
Type of voltage of the supply voltage
AC/DC
Supply voltage
12 V
Manual operation possible
No
Max. fluorescent lamp load
300 VA
Manufacturer
HAN
13.12.0.012.0000
GTIN
8012823336633
Number of contacts as normally open
1
Number of contacts as changeover
1
Width in pitch units
1
Installation depth
60.8 mm
Function
Electronic group switch
Mounting type
DIN rail
Supply voltage
12V
