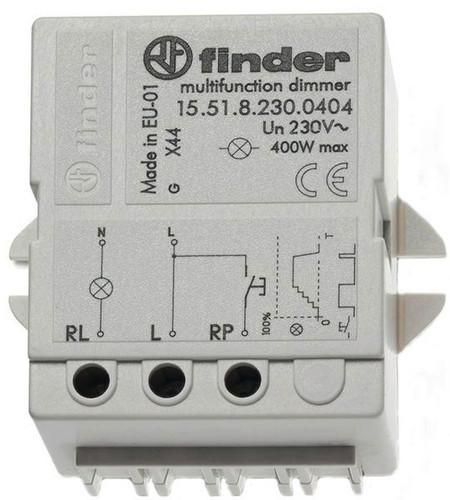

Dimmer for chassis or box mounting, dims continuously, 2 functions selectable via button: (dimmer and memory function). can be used for incandescent and halogen lamps, max. output circuit power: 400 W, built-in thermal overload protection, duty cycle (ED): 100%, lamp loads: incandescent and halogen lamps 400 W, dimmable energy-saving lamps 300 W, low-voltage halogen lamps via electronic ballast 400 W, minimum power: 10 W, connection voltage: 230 V AC.
| Property | Value |
| Device height: | 49.5 mm |
| Device width: | 50 mm |
| Device depth: | 22 mm |
| Connection type: | Screw terminal |
| Wire cross-section: | 2.5 to 6 mm² |
| Rated power: | 50 to 400 VA |
| Mounting type: | Flush-mounted |
| Dimming leading edge: | no |
| Dimming trailing edge: | yes |
| Rated voltage: | 230 V |
| Color: | gray |
| Suitable for protection class (IP): | IP20 |
| Operating mode: | Push button |
| Halogen-free: | yes |
| Composition: | Basic element with complete housing |
| Load type: | universal |
| Series dimmer: | yes |
| Extension input: | no |
| Light value memory: | yes |
| Can be used with button: | yes |
| Can be used with motion detector: | no |
| Can be used with presence detector: | no |
| Can be used with timer: | no |
| Can be used with radio button: | no |
| Can be used with IR button: | no |
| Mounting type: | other |
| Material: | plastic |
| Material quality: | Duroplast |
| Surface: | untreated |
| Surface finish: | matt |
| Frequency: | 50 Hz |
| Control voltage: | 230 V |
| Transparent: | yes |
| App control via Bluetooth: | no |
| Min. depth of device box: | 60 mm |
Features
Insert Module Type
Light switch inserts
Core cross-section
2.5 to 6 mm²
Manufacturer
HAN
15.51.8.230.0404
GTIN
8012823360935
Connection type
Screw terminal
Surface finish
Frosted
Operating mode
Push button
Mounting type
Other
Dimming trailing edge
Yes
Dimming phase control
No
Color
Frequency
50Hz
Suitable for outdoor use
No
Suitable for protection class (IP)
IP20
Device width
50 mm
Device height
49.5 mm
Device depth
22 mm
Halogen free
Yes
Min. depth of the device box
60 mm
Mounting type
Flush-mounted
Extension input
No
Nominal voltage
230V
Surface
Untreated
Transparent
Yes
Material
Plastic
Material quality
Duroplast
Compilation
Base element with complete housing
