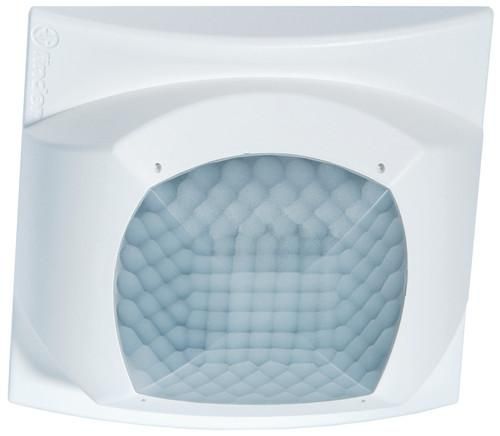

Motion and presence detector, for ceiling mounting UP/AP, detection area square, 64 m² (movement 8x8m) (sitting presence 4x4m), mounting height 3m with integrated bus coupler for connection to KNX bus, movement, monitoring and switch-off time freely adjustable from 1sec to 18h, dynamic light control, logical links, up to 5 outputs, adjustable sensitivity, setting of the motion monitoring time, automatic mode, follow-up time adjustable
| Property | Value |
| Number of channels: | 3 |
| Optimal mounting height: | 3 m |
| Color: | white |
| Design: | Presence detector |
| Mounting type: | Flush-mounted |
| KNX bus system: | yes |
| Max. range to one side: | 4 m |
| Max. range frontal: | 4 m |
| Min. duty cycle: | 0.1 s |
| Max. Duty cycle: | 1080 min |
| Detection field diameter on floor: | 8 m |
| Response brightness adjustable: | yes |
| Number of binary inputs: | 4 |
| Teach function for response brightness: | no |
| Self-learning switch-off delay: | no |
| Bus system radio bus: | no |
| Bus system LON: | no |
| Bus system Powernet: | no |
| Other bus systems: | without |
| Material: | plastic |
| Material quality: | thermoplastic |
| Surface: | untreated |
| Surface finish: | matt |
| RAL number (similar): | 9010 |
| With bus connection: | yes |
| Extension input: | no |
| Creep under protection/rear field monitoring: | no |
| Animal corridor: | no |
| Staircase monitoring: | yes |
| Transparent: | no |
| KNX radio bus system: | no |
| Bidirectional radio: | no |
| Operating mode switch: | no |
| Min. depth of the device box: | 46 mm |
Features
Number of channels
3
Operating mode switch
No
Self-learning switch-off delay
No
HAB
With KNX interface
Manufacturer
HAN
18.5K.9.030.0001
GTIN
8012823444253
Other bus systems
Without
Response brightness adjustable
Yes
Version
Presence detector
Surface finish
Frosted
Bus system radio bus
No
KNX bus system
Yes
KNX radio bus system
No
LON bus system
No
Powernet bus system
No
Detection field diameter on floor
8m
Color
Radio bidirectional
No
Max. duty cycle
1080 min
Max. range frontal
4m
Max. range to one side
4m
Min. duty cycle
0.1s
Min. depth of the device box
46 mm
With bus connection
Yes
Mounting type
Flush-mounted
Extension input
No
Surface
Untreated
Optimal mounting height
3m
RAL number (similar)
9010
Teach function for response brightness
No
Animal corridor
No
Transparent
No
Staircase monitoring
Yes
Creep protection/rear field monitoring
No
Material
Plastic
Material quality
Thermoplastic
