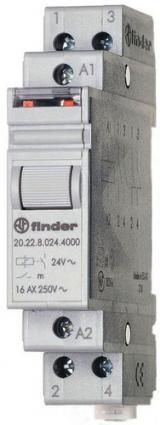

Lambda switch for 35 mm rail, 2 NO contacts for 16 A / 250 V AC, contact material: AgSnO2, max. switching capacity at 230 V AC: AC1 4000 VA, AC15 750 VA, incandescent and halogen lamps 2,000 W, fluorescent lamps compensated 750 W, fluorescent lamps uncompensated 1000 W, energy-saving lamps 400 W, LED (230 V AC) 400 W, LV halogen lamps or LED with electronic ballast 400 W, LV halogen lamps or LED with conventional ballast 800 W. Coil data: 24 V DC, 5 W, 105 Ohm, width 17.5 mm, switching sequence: off off / on on / off on / on off, test button and mechanical switch position indicator, relay protection class: IP 20
| Property | Value |
| Width in modular spacing: | 1 |
| Rated switching current: | 16 A |
| Control voltage 1: | 24 V |
| Control voltage type 1: | DC |
| Installation depth: | 58.4 mm |
| Function: | mechanical switch |
| Mounting type: | DIN rail |
| Type of supply voltage: | DC |
| Supply voltage: | 24 V |
| Max. incandescent lamp load: | 2000 W |
| Max. fluorescent lamp load: | 1000 VA |
| Max. fluorescent lamp load (duo circuit): | 1000 VA |
| Max. fluorescent lamp load (parallel compensated): | 750 VA |
| Max. Switching current (cos phi = 0.6): | 12 A |
| Manual operation possible: | yes |
| Number of contacts as normally open: | 2 |
Features
Type of voltage of the supply voltage
DC
Supply voltage
24 V
Manual operation possible
Yes
Max. fluorescent lamp load
1000 VA
Manufacturer
HAN
20.24.9.024.4000
GTIN
8012823196046
Number of contacts as normally open
2
Width in pitch units
1
Installation depth
58.4 mm
Function
Mechanical switch
Mounting type
DIN rail
Supply voltage
24V
