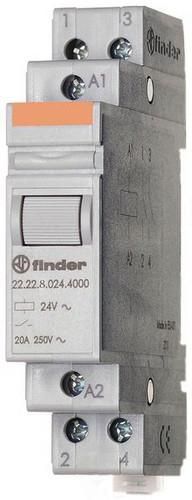

Installation relay for 35 mm rail, 2 NO contacts for 20 A / 250 V AC, contact material AgSnO2, max. switching capacity at 230 V AC: AC1 5000 VA, AC15 1000 VA, incandescent and halogen lamps 1000 W, fluorescent lamps with electronic ballast 400 W, fluorescent lamps with conventional ballast 360 W, energy-saving lamps 200 W, LED (230 V AC) 200 W, low-voltage halogen lamps or LED with electronic ballast 200 W, low-voltage halogen lamps or LED with conventional ballast 400 W. Coil data 8 V AC, 3 VA, 6.5 Ohm, width 17.5 mm, test button, relay protection class: IP 20
| Property | Value |
| Mounting type: | DIN rail |
| Rated current: | 20 A |
| Control voltage type 1: | AC |
| Control voltage 1: | 8 V |
| Max. fluorescent lamp load: | 1000 VA |
| Max. Switching current (cos phi = 0.6): | 12 A |
| Installation depth: | 58.4 mm |
| Function: | mechanical |
| Width in modular spaces: | 1 |
| Max. incandescent lamp load: | 2000 W |
| Max. fluorescent lamp load (parallel compensated): | 750 VA |
| Max. Fluorescent lamp load (duo circuit): | 1000 VA |
| Supply voltage: | 6.8 to 8.8 V |
| Frequency of control voltage 1: | 50 to 60 Hz |
| Type of supply voltage: | AC |
| Number of contacts as normally open: | 2 |
Features
Type of voltage of the supply voltage
AC
Supply voltage
6.8 to 8.8V
Max. fluorescent lamp load
1000 VA
Manufacturer
HAN
22.22.8.008.4000
GTIN
8012823288956
Number of contacts as normally open
2
Rated current
20A
Width in pitch units
1
Installation depth
58.4 mm
Function
Mechanically
Mounting type
DIN rail
Supply voltage
6.8 to 8.8V
