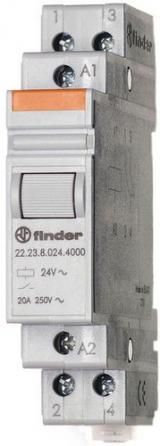

Installation relay for 35 mm rail, 1 normally open and 1 normally closed for 20 A / 250 V AC, contact material AgSnO2, max. switching capacity at 230 V AC: AC1 5000 VA, AC15 1000 VA, incandescent and halogen lamps 1000 W, fluorescent lamps with electronic ballast 400 W, fluorescent lamps with conventional ballast 360 W, energy-saving lamps 200 W, LED (230 V AC) 200 W, low-voltage halogen lamps or LED with electronic ballast 200 W, low-voltage halogen lamps or LED with conventional ballast 400 W, coil data 230 V AC, 3 VA, 4200 Ohm, width 17.5 mm, test button, relay protection class: IP 20
| Property | Value |
| Mounting type: | DIN rail |
| Rated current: | 20 A |
| Control voltage type 1: | AC |
| Control voltage 1: | 230 V |
| Max. fluorescent lamp load: | 400 VA |
| Max. Switching current (cos phi = 0.6): | 12 A |
| Installation depth: | 58.4 mm |
| Function: | mechanical |
| Width in modular spaces: | 1 |
| Max. incandescent lamp load: | 1000 W |
| Max. fluorescent lamp load (parallel compensated): | 360 VA |
| Max. Fluorescent lamp load (duo circuit): | 400 VA |
| Supply voltage: | 230 V |
| Frequency of control voltage 1: | 50 to 60 Hz |
| Type of supply voltage: | AC |
| Number of contacts as normally open: | 1 |
| Number of contacts as normally closed: | 1 |
Features
Type of voltage of the supply voltage
AC
Supply voltage
230 V
Max. fluorescent lamp load
400 VA
Manufacturer
HAN
22.23.8.230.4000
GTIN
8012823119304
Number of contacts as normally open
1
Number of contacts as opener
1
Rated current
20A
Width in pitch units
1
Installation depth
58.4 mm
Function
Mechanically
Mounting type
DIN rail
Supply voltage
230V
