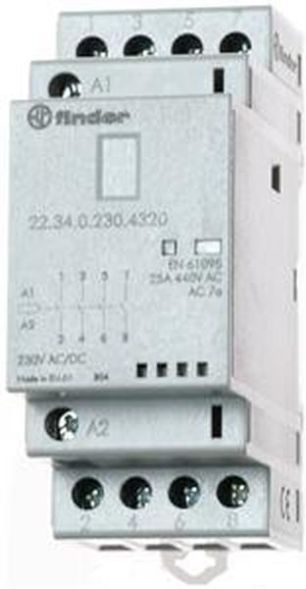

Installation contactor for 35 mm rail, 2 NO contacts and 2 NC contacts for 25 A / 250 V AC, contact material AgSnO2, max. switching capacity at 230 V AC: AC1 6250 VA, AC15 1800 VA, 3-phase motor load, AC3 (400-440 V AC) 4 kW, rated current AC AC-7c 10 A, incandescent and halogen lamps 2000 W, compact fluorescent lamp (energy saving lamp) 200 W, fluorescent lamp with electronic ballast 800 W, fluorescent lamp with conventional ballast 500 W, LED (230 V AC) 200 W, low voltage halogen lamps or LED with electronic ballast 200 W, low voltage halogen lamps or LED with conventional ballast 800 W. Coil: 24 V AC/DC, width 35 mm, with LED and mechanical Switch position indicator, relay protection class: IP 20
| Property | Value |
| Type of operating voltage: | AC |
| Degree of protection (IP): | IP20 |
| Number of division units: | 2 |
| Max. incandescent lamp load: | 2000 W |
| Rated operating current: | 25 A |
| Rated operating voltage: | 250 to 440 V |
| Max. fluorescent lamp load (parallel compensated): | 500 VA |
| Max. fluorescent lamp load (duo circuit): | 800 VA |
| Max. Fluorescent lamp load: | 800 VA |
| Additional equipment possible: | yes |
| Slider for manual switching: | no |
| Type of actuating voltage: | AC/DC |
| Installation depth: | 60.8 mm |
| Rated actuating voltage: | 24 V |
| Number of contacts as normally open: | 2 |
| Number of contacts as normally closed: | 2 |
Features
Rated operating current
25 A
Max. fluorescent lamp load
800 VA
HAB
2 openers 2 closers 25A coil 24V
Manufacturer
HAN
22.34.0.024.4620
GTIN
8012823358239
Number of contacts as normally open
2
Number of contacts as opener
2
Rated operating voltage
250 to 440 V
Installation depth
60.8 mm
IP protection)
IP20
Additional equipment possible
Yes
